1/01 E Service Instructions 16
Setting Instructions

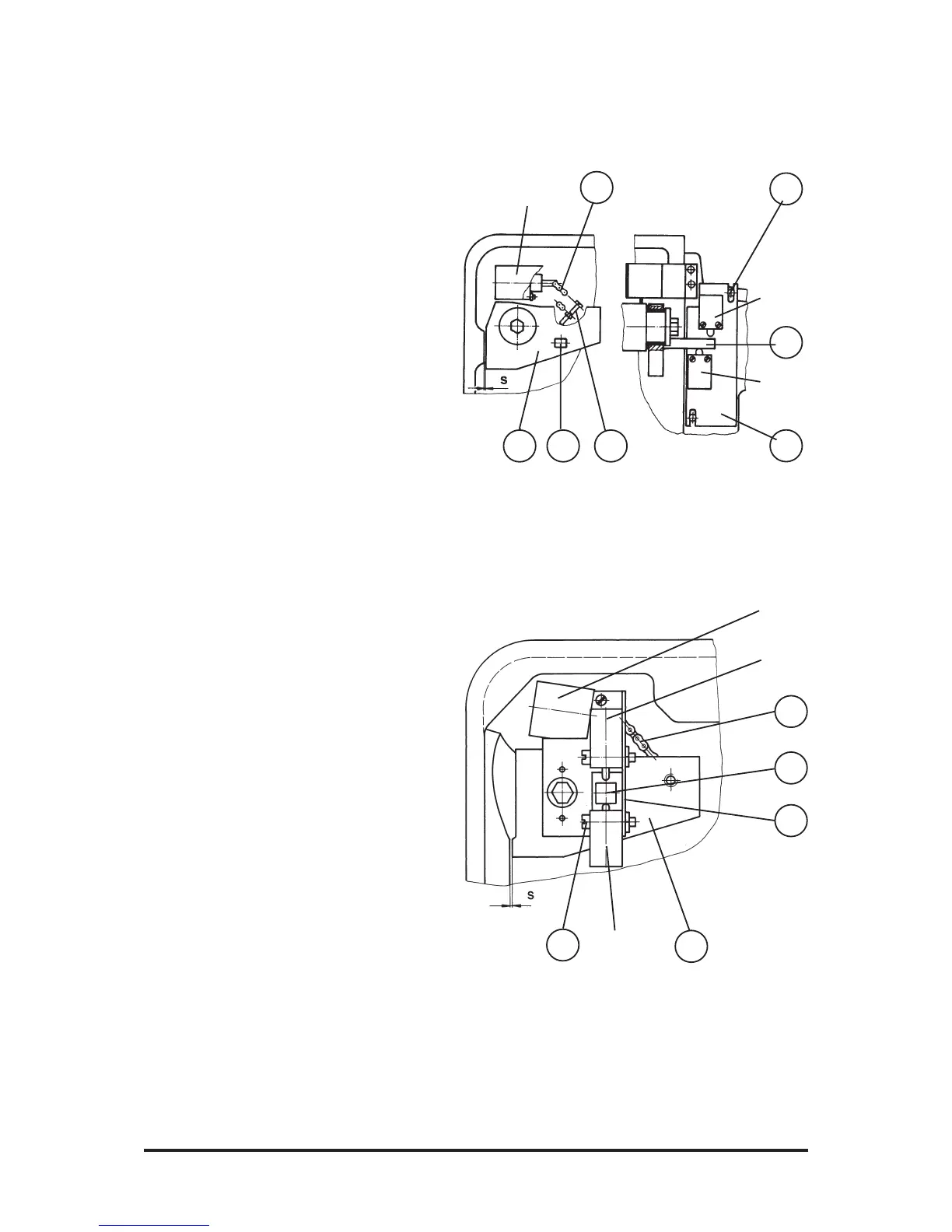

Machine Size 76 (Fig. 20)
The length of chain 1 between
solenoid Y80 and catch 2 is set
by a screw 3 so that the catch
forms a gap s = 0.6 - 1.0 mm with
re-spect to the bearing surface on
the frame.
Align switch plate 4 with screws 5
so that switch S81 is operated by
stop 6 when the solenoid is dead,
and switch S82 is operated by
stop 6 when the solenoid is ener-
gized (by activating the manual
clutch - refer to "Manual Crank-
ing").
Set the spring-contact switch so
that the cam follower still travels
ap-prox. 1.5 mm beyond the
switching point.
Machine Size 92 (Fig. 21)
Catch 2 connected with solenoid
Y80 through chain 1 forms gap
s = 0.6 - 1.0 mm with the stop
located on the machine frame
when the solenoid is dead. At this
position, S81 is operated. In the
energized state (by activating the
manual clutch - refer to "Manual
Cranking" in the Operating In-
structions manual), S82 is oper-
ated by stop 3.For this purpose,
switches S81 and S82 can be
aligned on switch plate 6 within
the range of their oblong holes by
screws 5.
1
3
6
S82
Y80
5
2
S81
Fig. 21
1
2 6 3
S81
5
S82
6
4
Y80
Fig. 20
