TOGGLE ATTACHMENT: DACRON/POLYESTER STEERING LINES

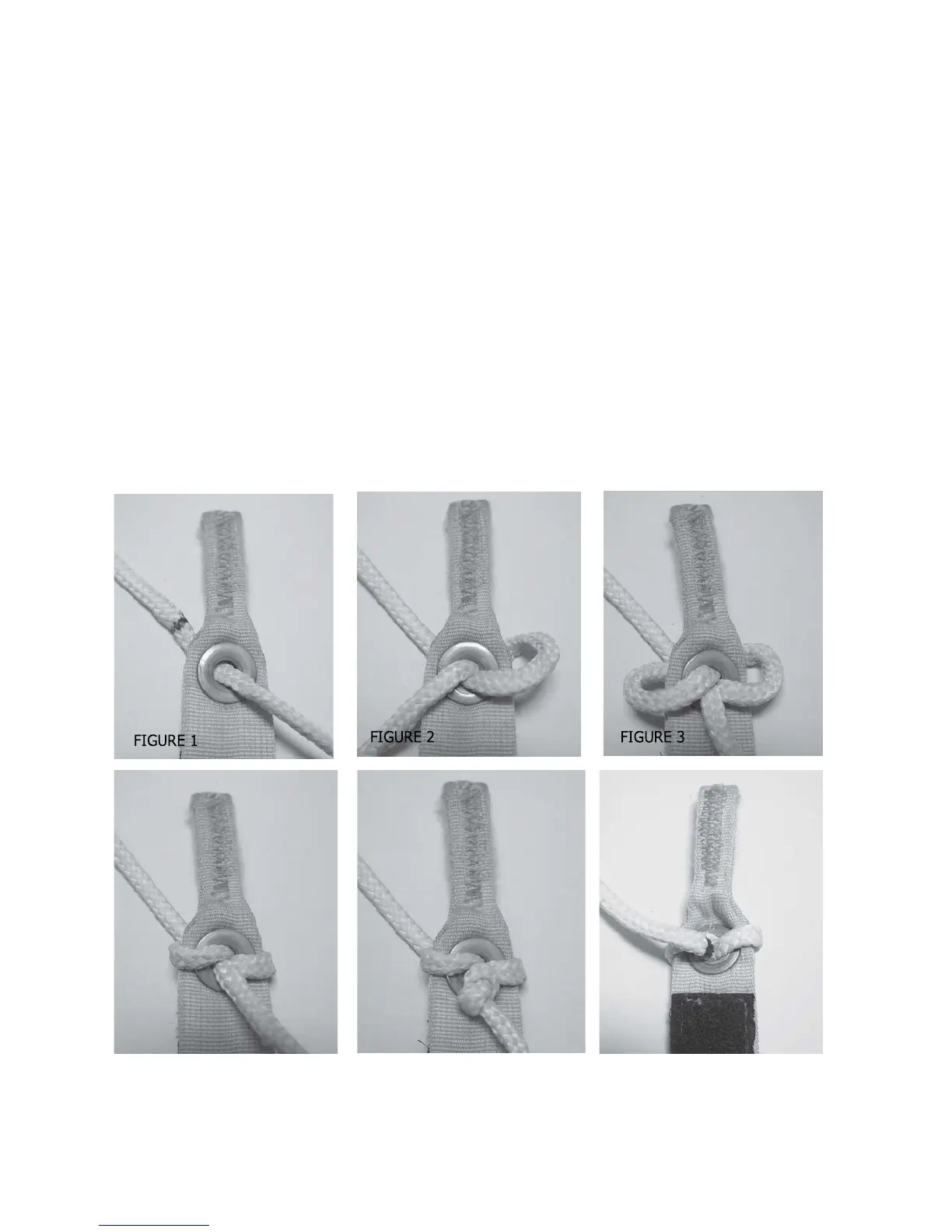

1. Once you have routed the steering line through the guide ring located on the riser continue
to route it through the grommet in the toggle, starting from the hook and loop fastener side.
Figure 1
2. Then route the steering line around the toggle on the right side and then back through the
grommet. Figure 2
3. Now route the steering line around the toggle on the left side and then back through the
grommet. Figure 3
4. Adjust the line so that the toggle mark is on the line exiting the grommet going to the
canopy, at the base of the grommet, on the hook and loop fastener side of the toggle. Pull
out all the slack while maintaining the toggle mark position. Figure 4.
5. Tie an overhand knot in the steering line and cinch it against the toggle. Figure 5
6. Figure 6 shows the toggle mark at the base of the grommet after completion.
FIGURE 4
FIGURE 5
FIGURE 6
