Performance Tool M503 User Manual

5

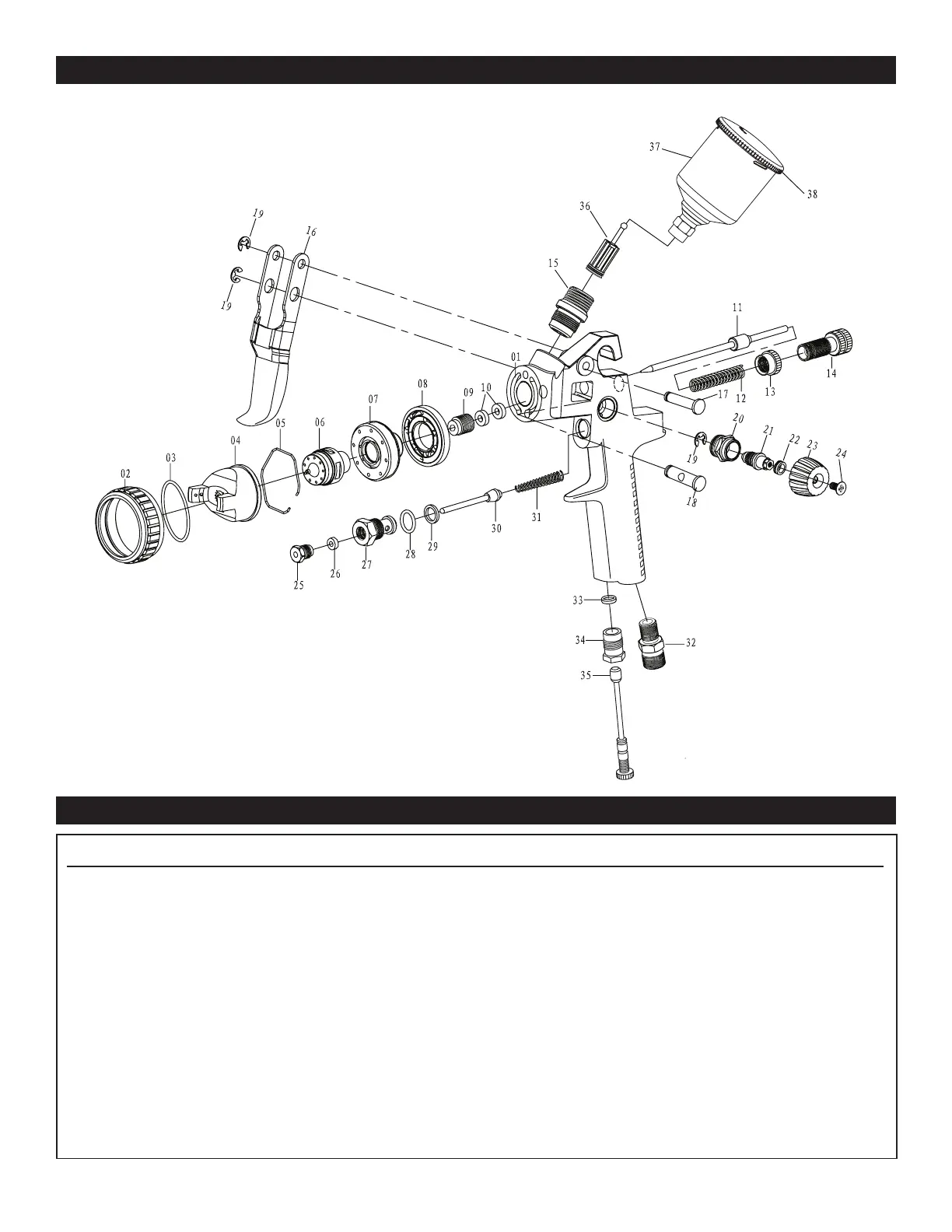

1.2 MM SPRAY GUN PARTS LIST
REPLACEMENT PARTS LIST
1. Gun body 1
2. Nozzle Cap 1
3. Washer 1
4. Air Nozzle* 1
5. Snap Ring 1
 6. FluidNozzle* 1
7. Brass Ring 1
8. Nylon Gasket 1
9. Packing Bushing 1
10. Washer 2
11. Needle* 1
12. Spring 1
13. Lock Nut 1
14. Fluid Volume Control Knob 1
15. Paint Cup Bushing 1
16. Trigger 1
17. Trigger Pivot Pin 1
18. Needle Actuator Pin 1
19. E-Clip 3
20. Spray Regulator Nut 1
21. Spray Regulator Screw 1
22. Nylon Seal 1
23. Spray Pattern Control Knob 1
24. Screw 1
25. Needle Valve Bushing 1
26. NylonRing 1
27. Air Valve 1
28. O-Ring 1
29. Washer 1
30. Needle Valve 1
31. Spring 1
32. Air Inlet Bushing 1
33. Washer 1
34. Air Volume Control Stem 1
35. Air Valve Stem Bushing 1
36. PaintCupFilter* 1
37. Paint Cup Assembly* 1
38. Lid 1
# Description Qty. # Description Qty. # Description Qty.
*Asterisk denotes parts included in repair kit, M705CK
Call Customer service for replacement parts: 1-800-497-0552
