Performance Tool M576DB User Manual

4

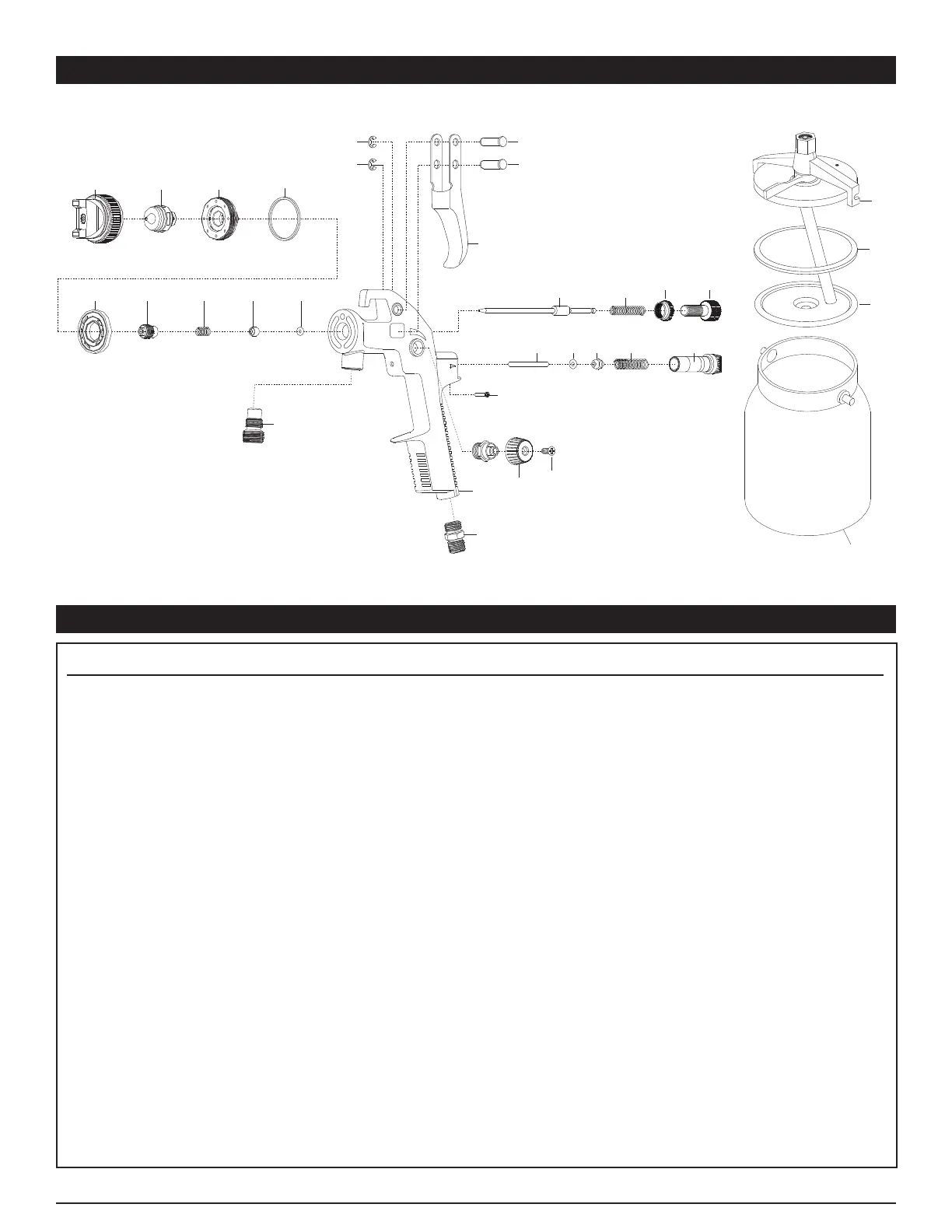

REPLACEMENT PARTS LIST
Call Customer service for replacement parts: 1-800-497-0552
REPLACEMENT PARTS LIST
1. Air Inlet Fitting 1
2. Gun Body 1
3. Volume Control Valve 1
(O-Ring size: 9 x 1.9 / 10 x 1.5 mm)
4. Volume Control Knob 1
5. Volume Control Knob Screw 1
6. Air Control Pin 1
7. O-Ring (size: 6.5 x 1.9 mm) 1
8. Air control Valve 1
(Seal Ring size: 12.5 x 5.2 x 3 mm)
9. Spring 1
10. Air Valve Control Knob 1
(O-Ring size: 12 x 2.4 mm)
11. Retaining Screw 1
12. Needle Assembly 1
13. Needle Spring 1
14. Needle Locking Nut 1
15. Fluid Control Knob 1
16. Trigger Pin 1
17. Trigger Pin 1
18. Trigger 1
19. E-Clip 1
20. E-Clip 1
21. O-Ring (size: 9 x 3.3 x 2 mm) 1
22. Needle Seal Ring 1
23. Compress Spring 1
24. Screw 1
25. Gasket 1
26. Washer (size: 34.5 x 32.5 x 1.6 mm) 1
27. Nozzle Seat 1
28. Nozzle 1
29. Air Cap Assembly 1
30. Paint Cup Connector 1
31. Paint Cup 1
32. Paint Cup Lid Assembly 1
33. Gasket 1
34. Gasket 1
# Description Qty. # Description Qty.
1
3
4
5
987
6
11
12
13
14 15
26
25
24 23 22 21
29 28 27
19
20
16
17
30
2
10
18
31
32
33
34
