6
REPLACEMENT PARTS LIST
# Description Qty.
39 Return Spring 1
40 Spring Washer 6
41 Nut 6
42 Caster Wheel 2
43
Caster Wheel Spindle
2
44 Caster Wheel Fork 2
45 Steel Ball Bearings 28
47 Right Side Member 1
48 Flat Washer 2
49 Lock Washer 2
50 Nut 2

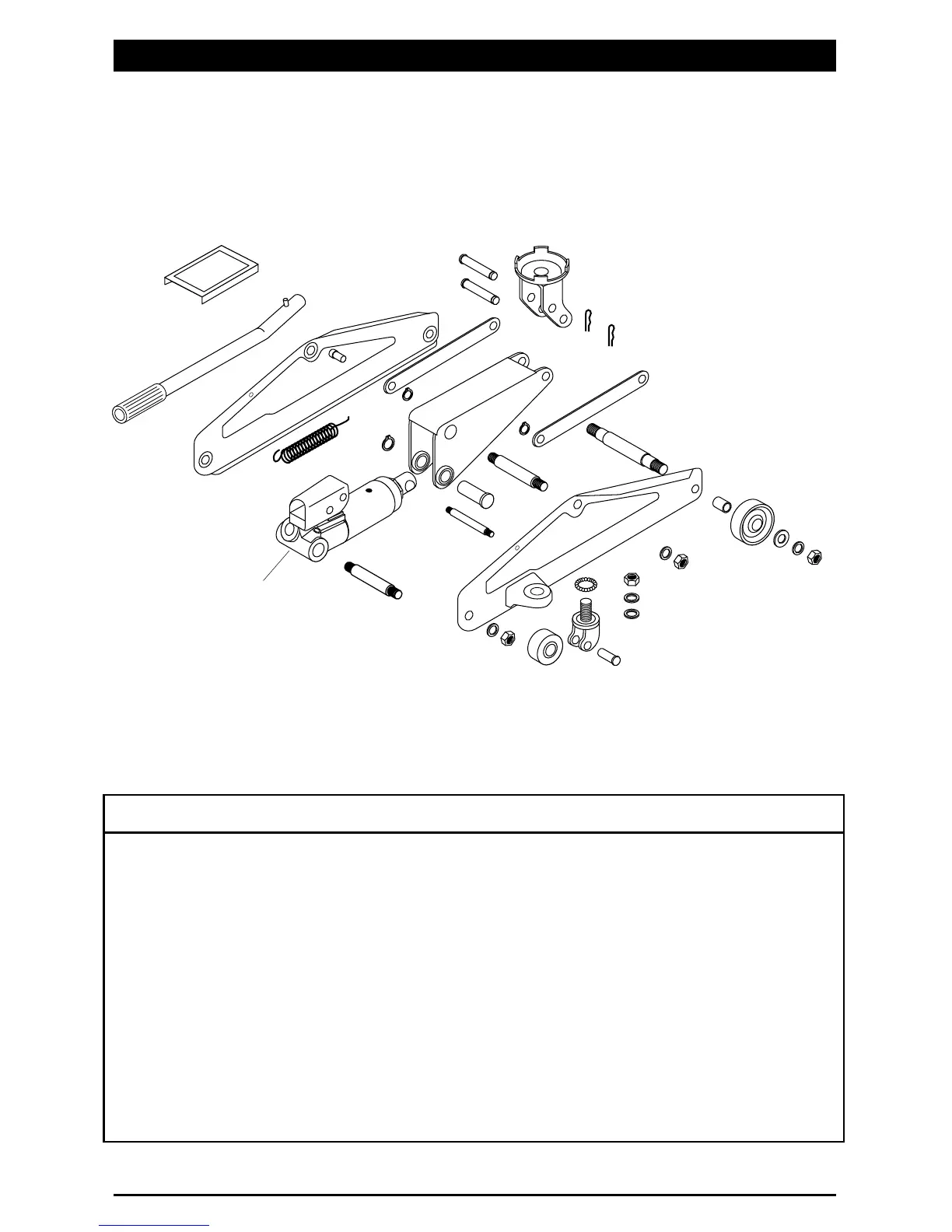

Figure 5
67
66
69
60
61
62
64
58
63
65
61
60
54
52
51
53
40
41
41
40
50
49
48
47
45
44
43
42
41
40
55
70
39
73
68
Ram Assembly
(See figure 6)
72
# Description Qty.
51 Front Wheel Spacer 2
52 Front Wheel 2
53 Flat Washer 2
54 Front Wheel Spindle 1
55 Body Spindle 1
58 Left Side Member 1
60 Radius Link 2
61 Retaining Ring 2
62 Lifting Arm 1
63 Cross Head Pin 1
64 C 19 Retaining Ring 1
# Description Qty.
65 Lifting Arm Spindle 1
66 Saddle Mount Pin 1
67 Saddle Assembly 1
68 Radius Link Pin 1
69 Retaining Pin 2
70 Pump Handle 1
72 Cover Plate 1
73 Support Bar 1
