11

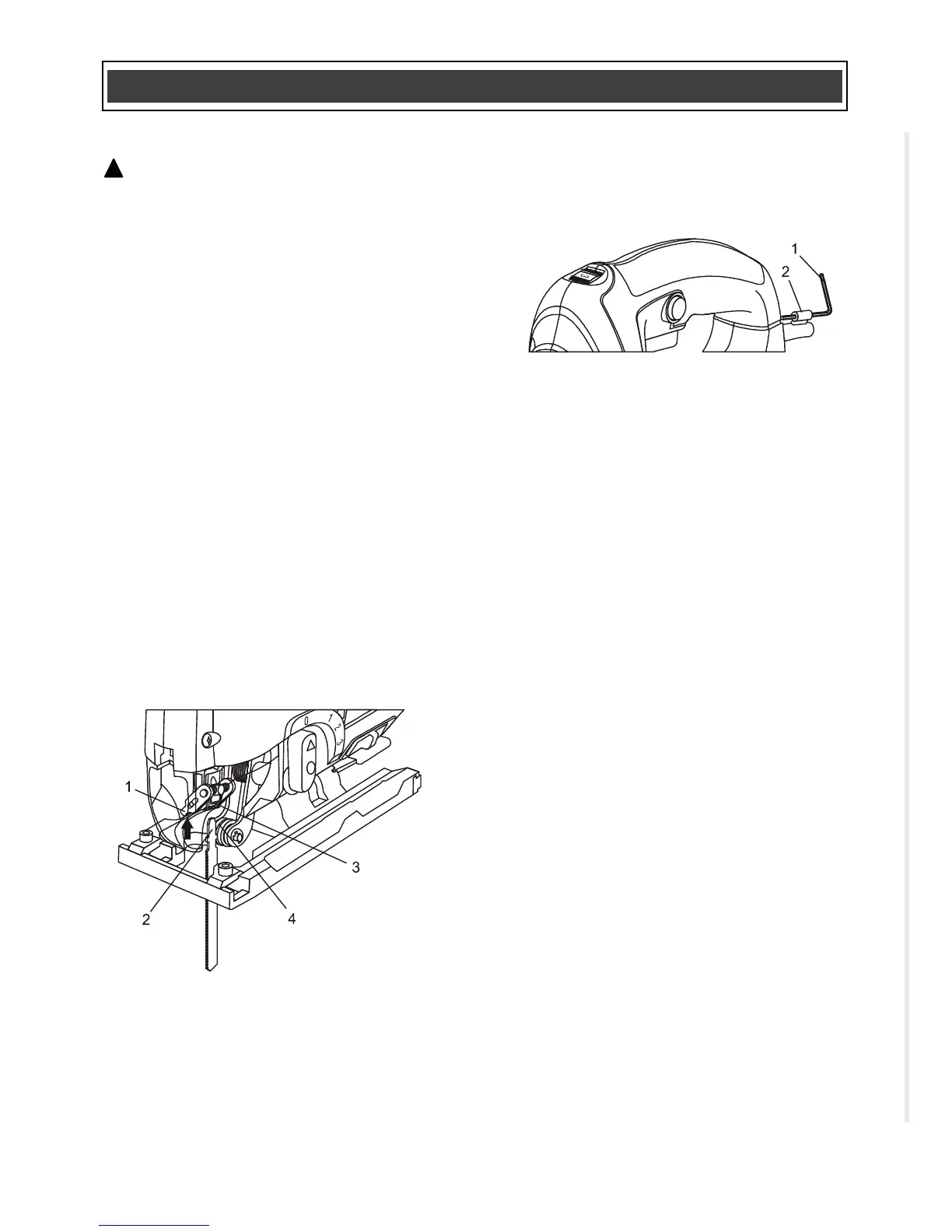

INSTALLING A BLADE
WARNING:
Always remove the plug
from the power source before installing or
removing a blade or adjusting the jigsaw
in any way.
1. To install a blade in the jigsaw, push
upward on the blade locking lever (1)
(Fig. 1).
2. Insert the appropriate blade (2) into the
blade slot (3) as far as it will go.
NOTE: Make sure the rear edge of the blade
is nested in the blade guide roller (4).
3. Release the blade-locking lever.
NOTE: The blade will automatically be locked
into the blade holder. Pull outward on the
blade to ensure it is properly locked into the
blade holder.
REMOVING A BLADE
To remove a blade, simply push upward on
the blade locking lever and remove the blade
from the blade holder.
HEX KEY STORAGE
The 1/8" (3 mm) hex key (1) for adjusting the
edge guide is stored in power cord holder (2)
at the rear of the jigsaw (Fig. 2).
INSTALLING THE EDGE GUIDE
This jigsaw is equipped with an edge guide
that will assist in cutting narrow edges from a
workpiece.
1. Loosen the two edge guide mounting
screws (1) (Fig. 3).
2. Insert the edge guide (2) into the edge
guide mounting slots (3) in the sole
plate.
3. Set the edge guide at the desired
distance from the blade and lock it into
place by tightening the edge guide
mounting screws.
NOTE: Tighten the screws using the 1/8"
(3 mm) hex key supplied.
4. Make a test cut on a scrap workpiece to
ensure the edge guide is set correctly.
5. Adjust the edge guide as required.
ASSEMBLY AND OPERATION
!
Fig. 1
Fig. 2
