Performax 241-0992 User Manual

12

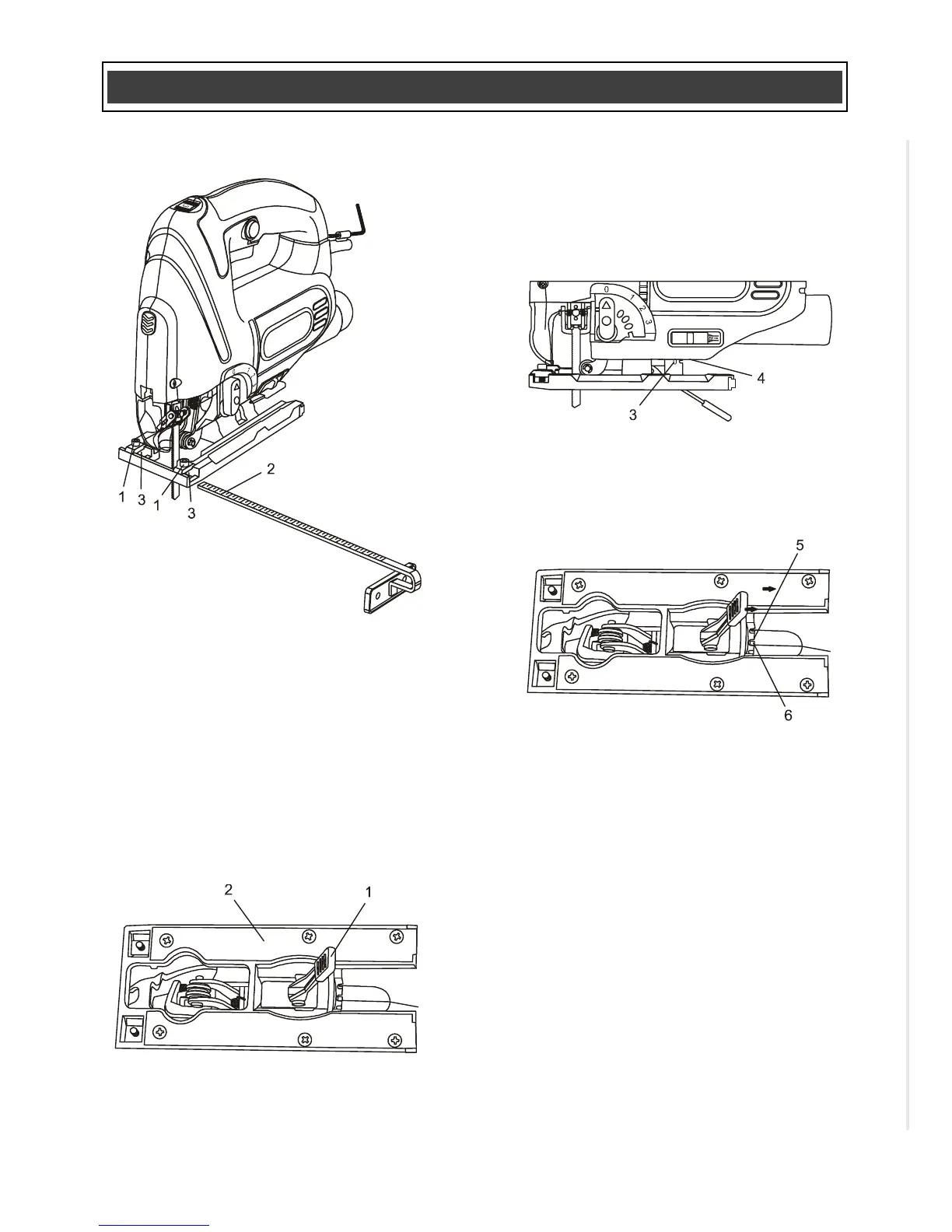

INSTALLING THE EDGE GUIDE – cont’d
SETTING THE BEVEL CUTTING ANGLE
Bevel cutting angles may be adjusted from 0°
to 45° either left or right. To adjust the bevel
angle:
1. Lift the bevel angle quick release lever
(1) out of the sole plate (2) until the sole
plate can be rotated (Fig. 4).
2. Bevel angles (3) are marked on a scale
located on the side of the base (Fig. 5).
3. Slide the base toward the front of the
jigsaw and align the bevel angle with the
edge of the base (4).
4. Slide the base backward to engage the
bevel angle slot (5) with the indexing pin
(6) (Fig. 6)
NOTES:
a) Use a protractor to check the bevel angle
between the blade and the base.
b) To set the bevel angle at intermediate
angles, do not slide the base backward.
5. Once the desired bevel angle is
obtained, lock the base by pressing the
quick release lever into the sole plate.
6. Make a test cut in a scrap workpiece and
measure the bevel angle. Adjust the
bevel angle if necessary.
ASSEMBLY AND OPERATION
Fig. 3
Fig. 4
Fig. 5
Fig. 6
