MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
A2 MULTIPROP System
Compression Brace Head
MP/SRU
The Compression Brace Head MP/SRU
is used for supporting the inclined-posi-
tioned Main Beam SRU. (Fig. A2.10)
The Compression Brace Head can also
be used on inclined surfaces.
(Fig. A2.11)
Technical data
For the permissible load-bearing
capacity see type test Compression
Brace Head MP/SRU with
MULTIPROP.
– Always position screw head on the
prop!
– Check nuts for tightness!
Assembly
1. Secure Compression Brace Head
MP/SRU (9) diagonally on the end
plate of the MULTIPROP Prop by
means of 2 x MULTIPROP Bolts with
Nuts (8). (Fig. A2.10 + A2.11)
2. Spindle out MULTIPROP Slab Prop to
required length.
3. Secure Compression Brace Head
MP/SRU on Steel Waler SRU using
Bolts and Cotter Pins (9.1).

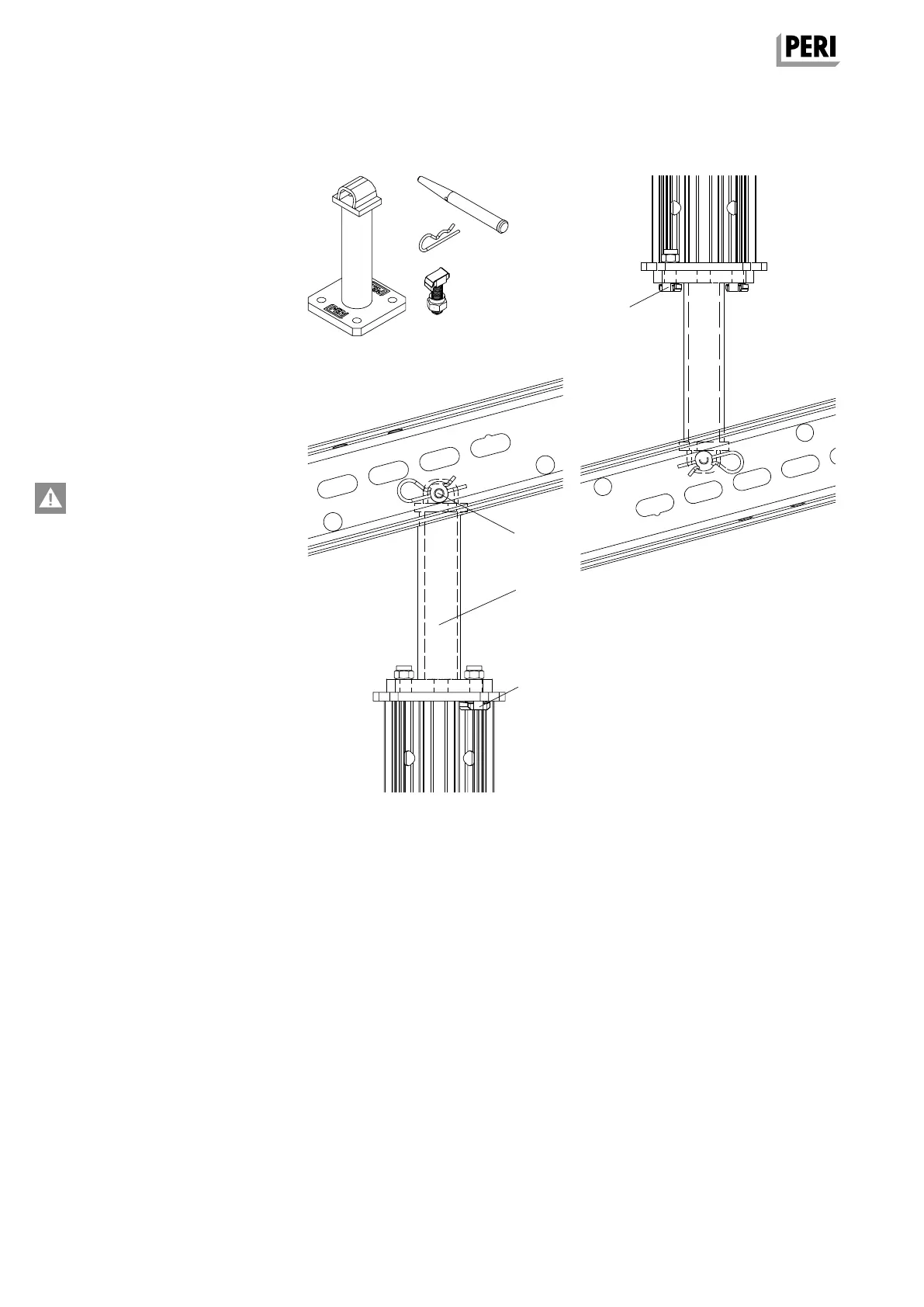

Fig. A2.10
9
8
8
9.1
Fig. A2.11
