MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
A3 Horizontal Assembly
Assembly with 4 legs
For horizontal assembly, a flat and even
assembly area is required.
Preparation
1. Adjust length of props as described
in A1.
2. Pre-position Props (1) and Frame
MRK (2) on the ground:
– The inner tubes (1.2) of the top and
bottom props are pointing outwards.
This means any ground unevenness
can be more easily compensated as
well as allowing the formwork to be
levelled.
– The base plates (1.8) must rest on
the ground with one edge surface.
(Fig. A3.01a)
Checking assembly is easier with the
measuring tape (1.6) facing towards
the centre of the tower.
(Fig. A3.01b)
– The prop splices are positioned on
one level. The alignment of the prop
axes is to be constantly monitored
in order to avoid time-consuming
corrections.
– With rectangular-shaped shoring
towers, the wider frame is positioned
on the ground. (Fig. A3.01)
– The number and position of the
Props MP and the Frames MRK
must correspond to the respective
assembly variant of the type test.

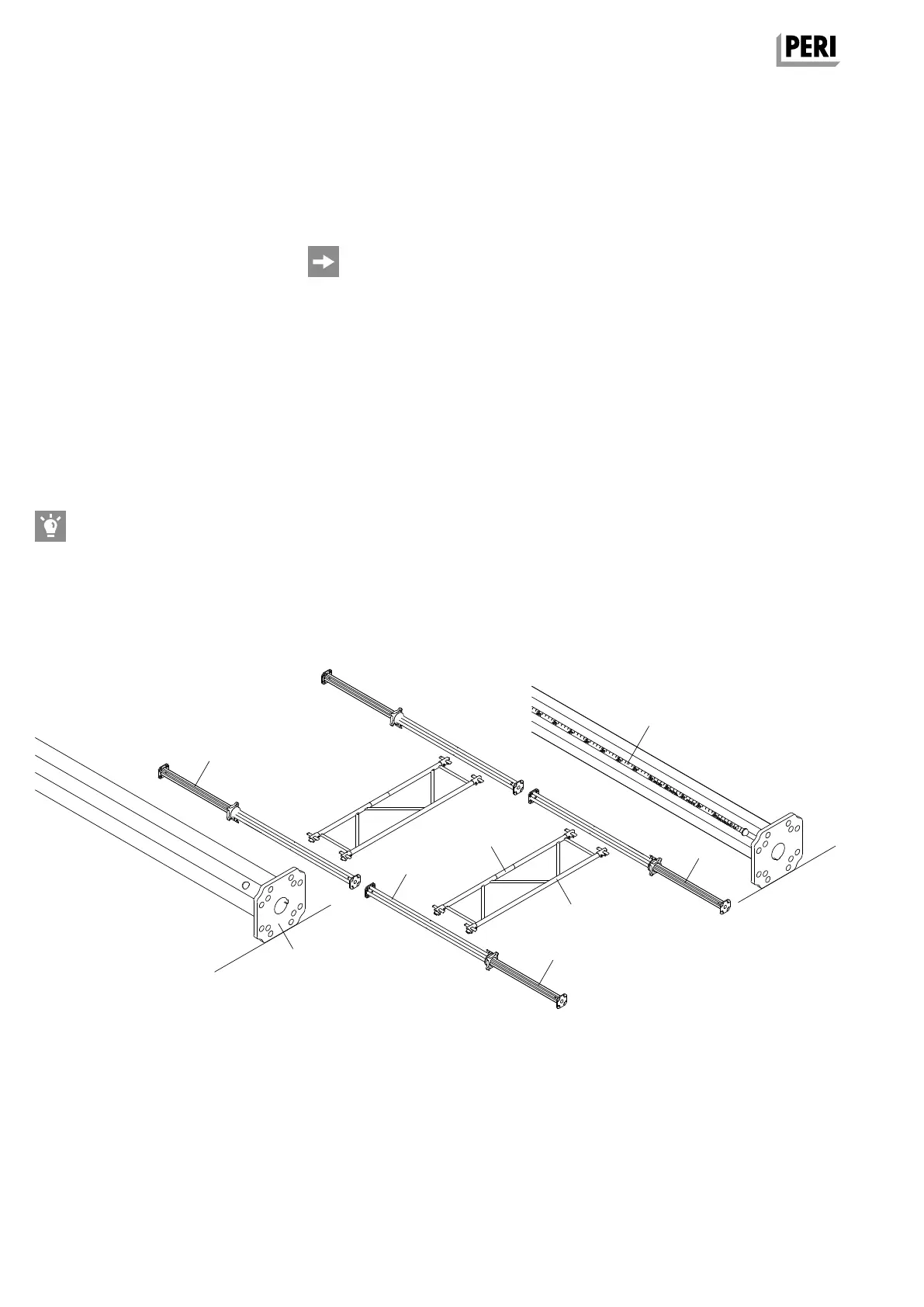

Fig. A3.01a
Fig. A3.01b
Fig. A3.01
1.2
1.2
1.8
1.6
1.6
2.4
1
2
