MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
A3 Horizontal Assembly
Assembly with 4 legs
Assembling the tower

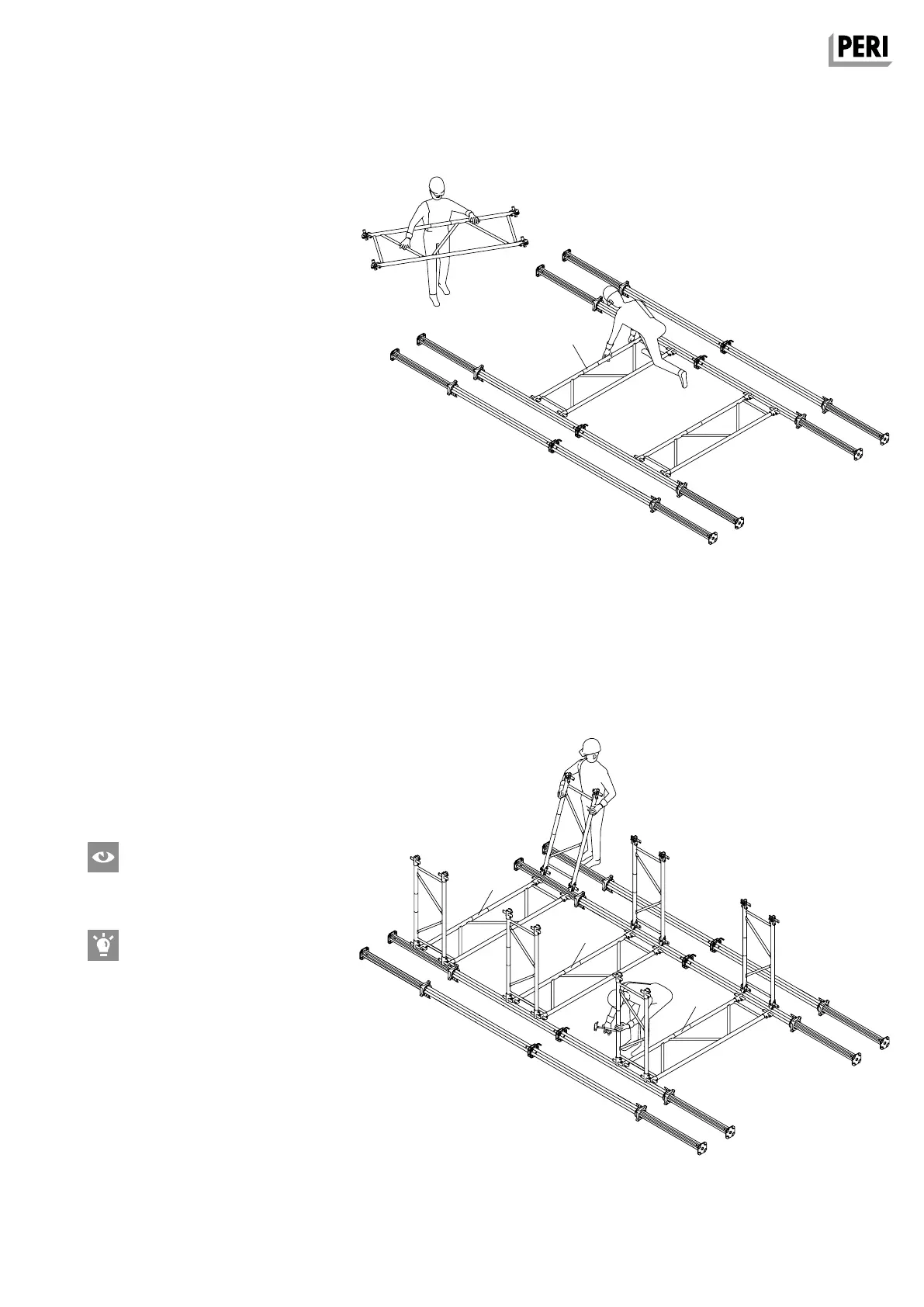

1. Connect the props to each other.
2. Mount the frames. The wider
frame is positioned on the ground.
(Fig. A3.02)
3. Mount lateral frames. (Fig. A3.03)
– Yellow to yellow and silver to silver.
– Close the wedges in the direction of
the assembly area.
Check the colour of the wedge connec-
tions as well as the wedge direction.
The text on the adhesive labels (2.4) is
legible from the later assembly area!
Fig. A3.02
Fig. A3.03
2.4
2.4
2.4
2.4
