MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
A5 Bracing MULTIPROP Towers
Support with Push-Pull
Props
During assembly and disassembly,
the MULTIPROP Towers or units must
be secured against tipping over using
temporary assembly aids, if necessary.
Risk of tipping!
Units have to support one another.
For providing stability, mount
3 push-pull props as assembly aids.
Assembly

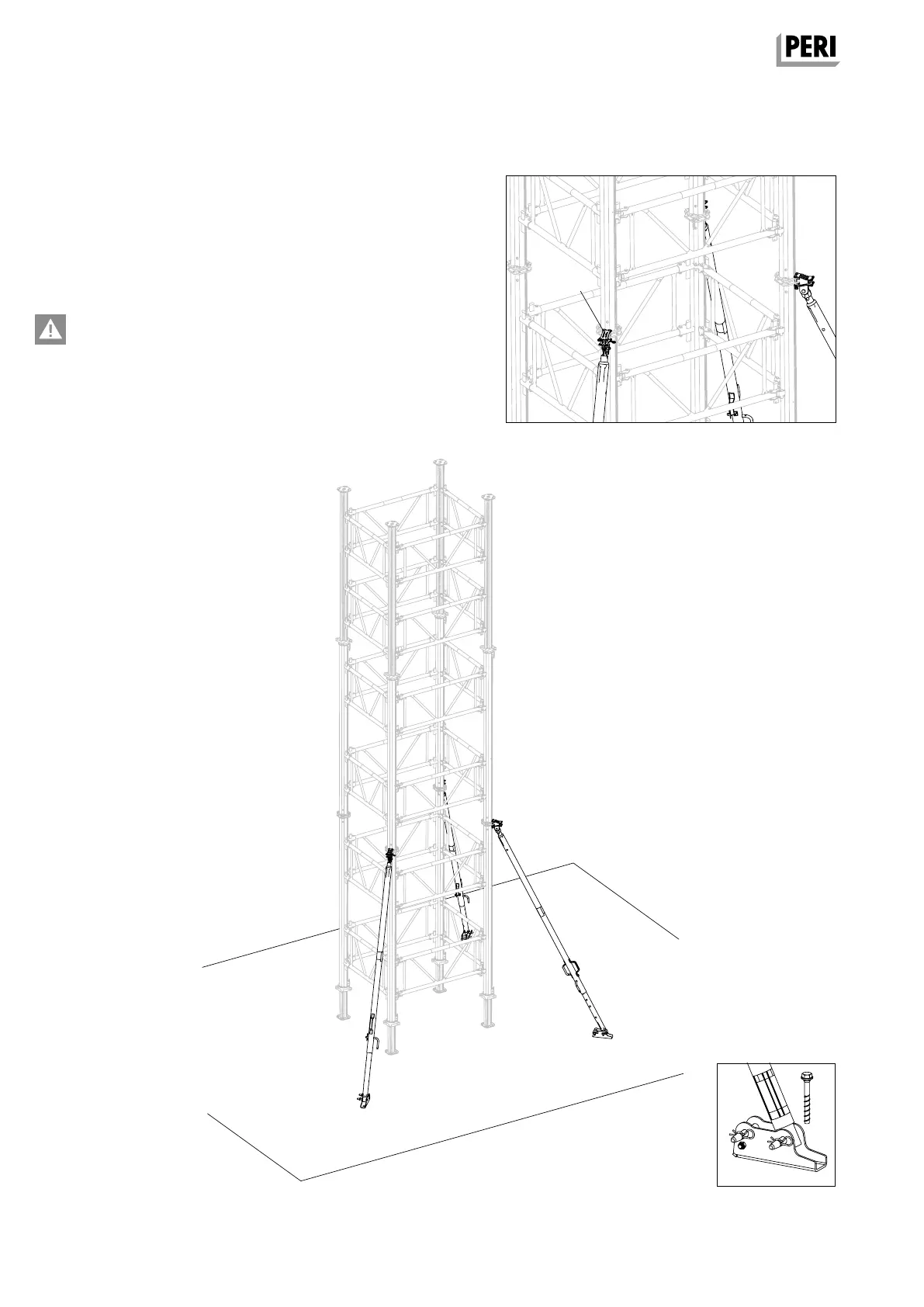

1. Fix Brace Connector MPR (13) to prop
joint. (Fig. A5.02a)
2. Fix push-pull prop with bolts and
cotter pins.
3. Fix Base Plate to the foundation by
means of Anchor Bolt.
4. Fix push-pull prop to the base plate
with bolts and cotter pins.
(Fig. A5.02b)
5. Mount additional push-pull props and
detach tower from the crane.
(Fig. A5.02)
Fig. A5.02a
Fig. A5.02
Fig. A5.02b
