MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
A5 Bracing MULTIPROP Towers
Support in units
Assembly
1. Arrange MULTIPROP Towers in the
grid of the Frames MRK.

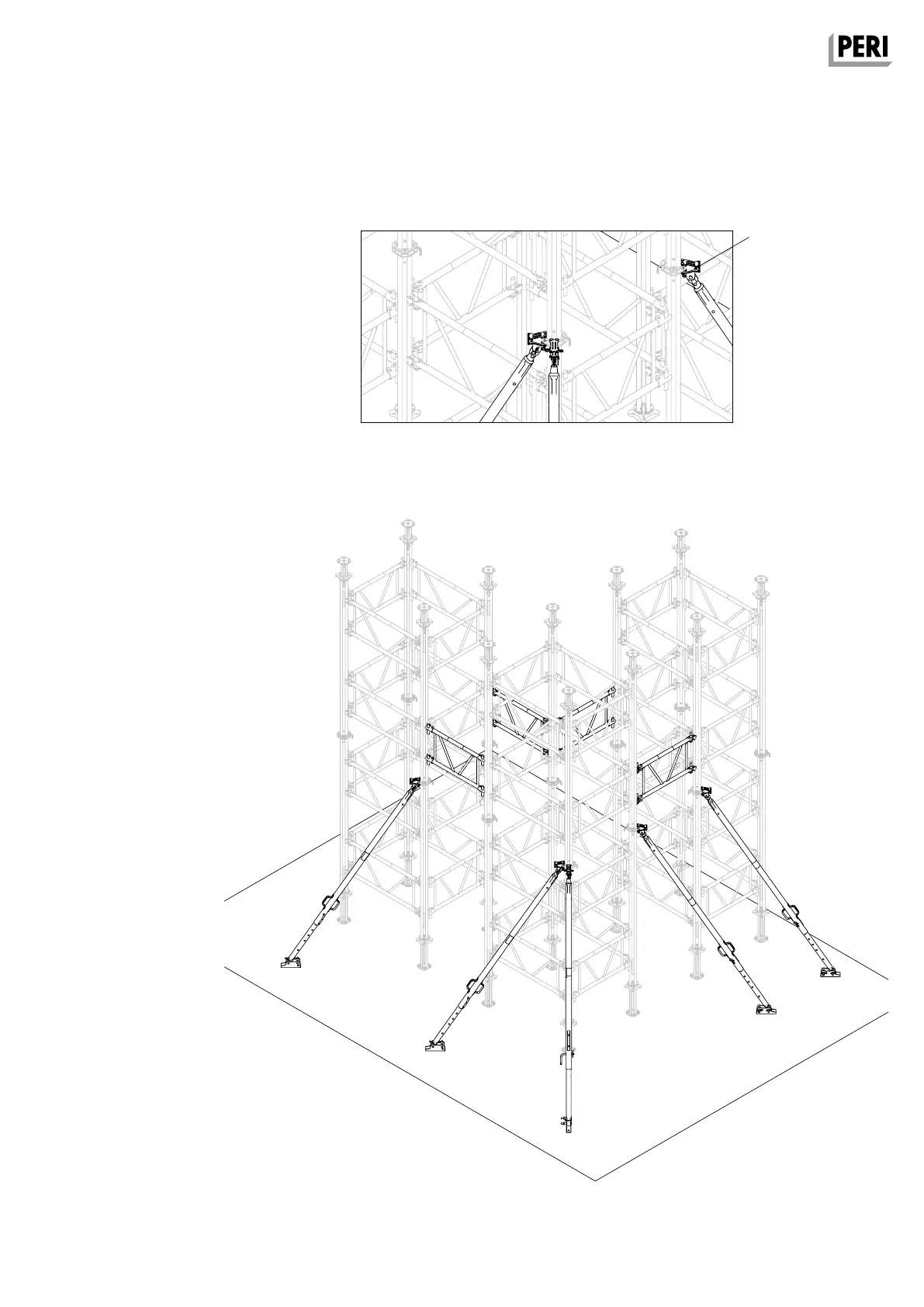

2. Install Frame MRK between the
towers. (Fig. A5.03)
3. Hammer in wedges.
4. Install push-pull props at the prop
joints. (Fig. A5.03a)
Alternatively:
Connections with scaffold tubes
1. Fix Scaffold Tube Couplers MG to the
MULTIPROP Props.
2. Connect MULTIPROP Towers with
scaffold tubes. (without illustration)
Fig. A5.03a
Fig. A5.03
