36
0 – 300 kg 600 cm 600 cm
301 – 400 kg 700 cm 650 cm
401 – 500 kg 800 cm 700 cm
501 – 600 kg 800 cm 700 cm
601 – 800 kg 800 cm 650 cm
801 – 1000 kg 750 cm 600 cm
1001 – 1200 kg 700 cm 550 cm
1201 – 1400 kg 650 cm 550 cm
1401 – 1600 kg 650 cm 500 cm
1601 – 2000 kg 600 cm 500 cm
MRK 296 350
MRK 266 – 225 440
MRK 201.5 560
MRK 150 880
MRK 137.5 920
MRK 120 1000
MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
B3 Tables and Towers
Lowering
Check stability!
The lowering procedure must take place
gradually.
1. Turn the adjusting collar (1.4) of the
MULTIPROP Prop and retract the
inner tube (1.2).
2. Repeat the procedure for all props.
Frame at inner tube: release wedges at
two diagonally-positioned places.
In order to make the lowering procedure
easier, the table or tower can be held in
position by the Trolley with Winch or the
Table Trolley. The props can be spindled
in without being subject to any load.

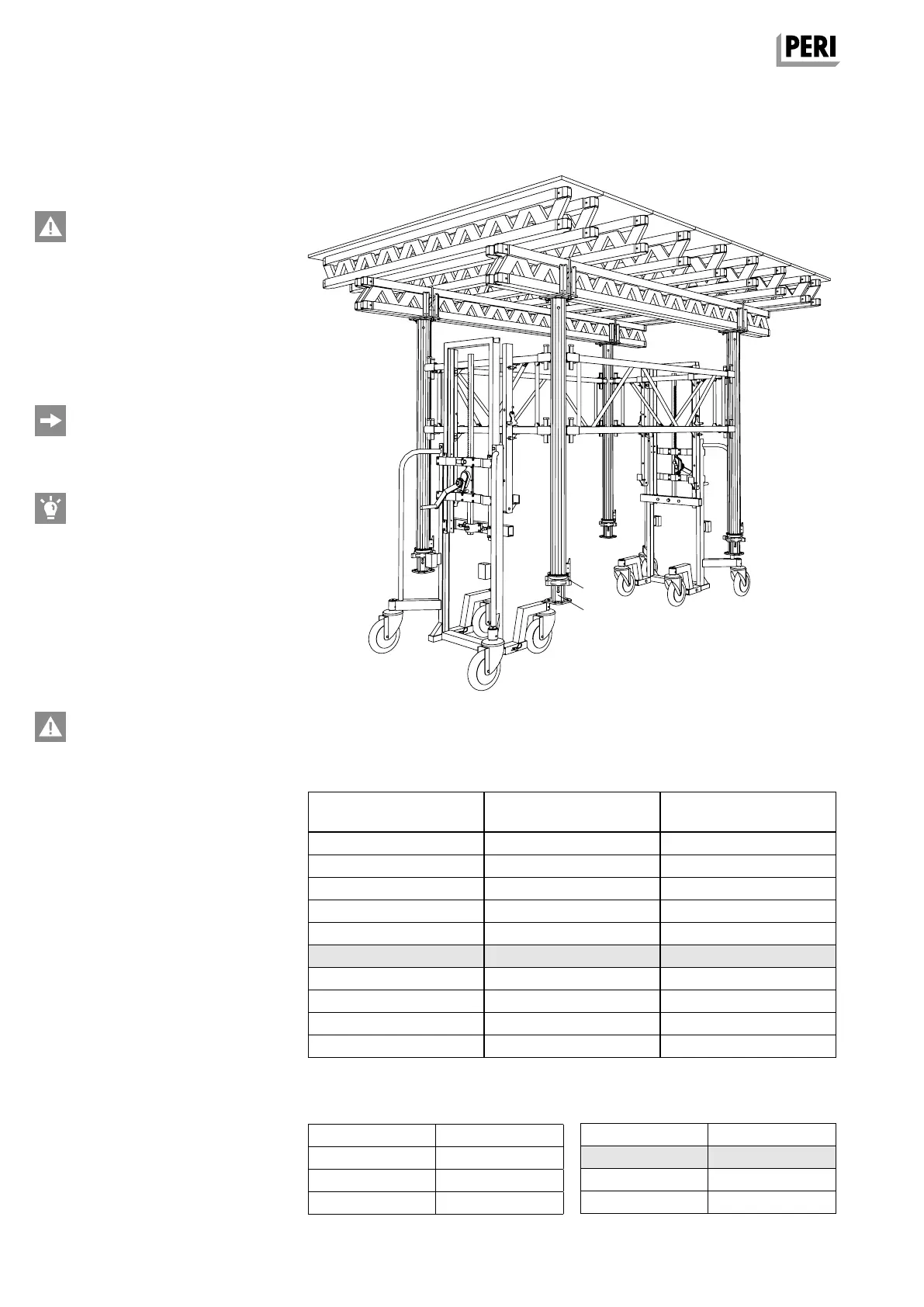

(Fig. B3.01)
Trolley with Winch
Follow the Instructions for Use for
the PERI trolley with Winch.
Moving unit can tip over!
Moving
1. Position two trolley with winch units
in the centre of the narrow frame
sides of the falsework for each table
or tower.
2. Support the frames using the
MULTIPROP adapters.
3. Uniformly raise the table or tower
with the winches.
4. Move the table or tower.
Permissible Weights and Heights
Requirements for moving in longitudinal direction
MULTIPROP ≥ MRK 120
MULTIPROP
Permissible MRK Frames for tables and towers
Aluminium frame Steel frame
Perm. lifting capacity [kg]
Perm. lifting capacity [kg]
Total weight
Tower / Table
Longitudinal direction of travel
Table height up to
Transverse direction of travel
Table height up to
Fig. B3.01
1.4
1.2
