PerkinElmer LAMBDA 265 Assembly/Installation Instructions

09931295C
14

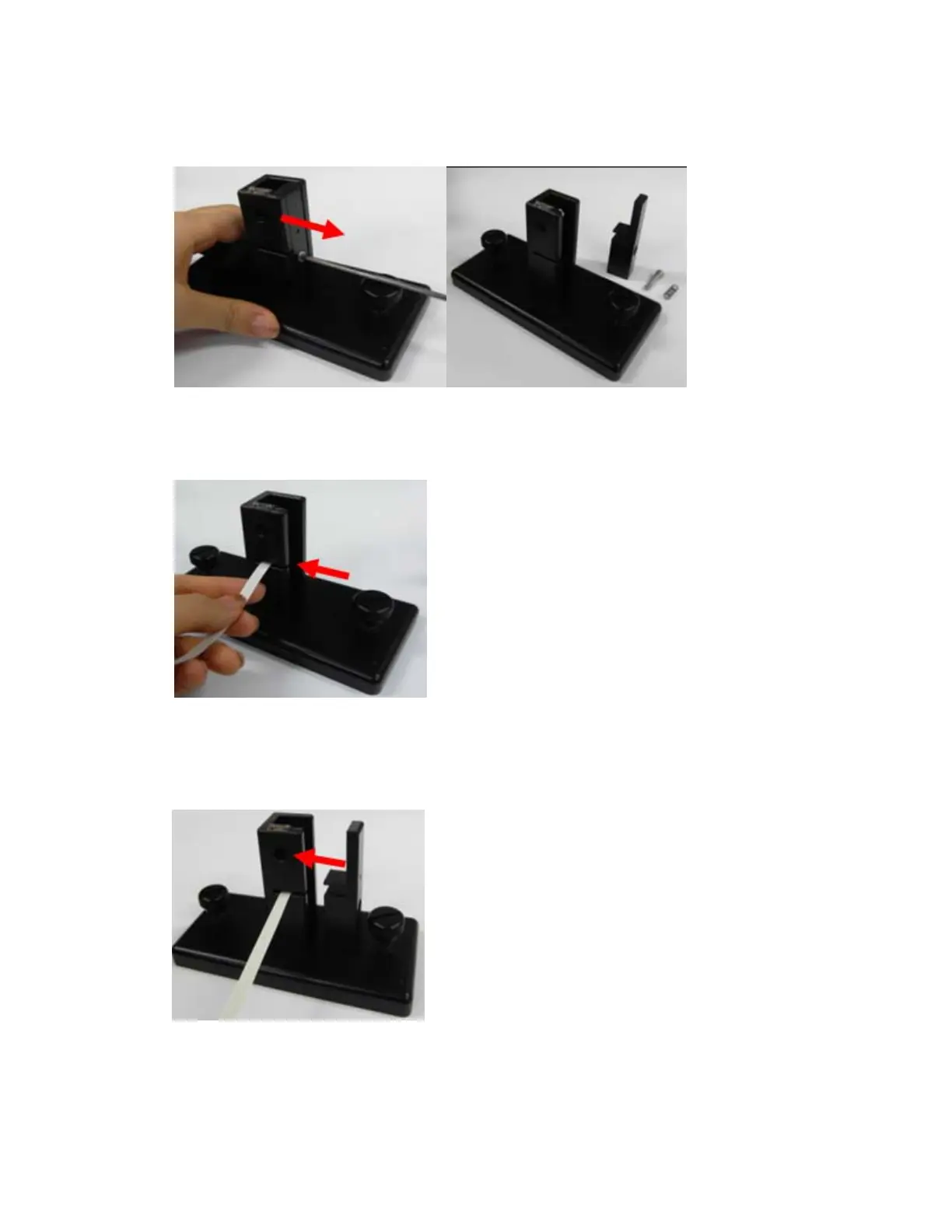

3. Using the M3 wrench, remove the screw in the single cell holder and disassemble the holder.
Figure 27 Removing the screw
4. Insert the stirrer head of the stirrer control cable into the single cell holder.
Figure 28 Inserting the stirrer
5. Assemble the single cell holder with the stirrer head inserted, and tighten the screw using the M3
wrench.
Figure 29 Tightening the screw
