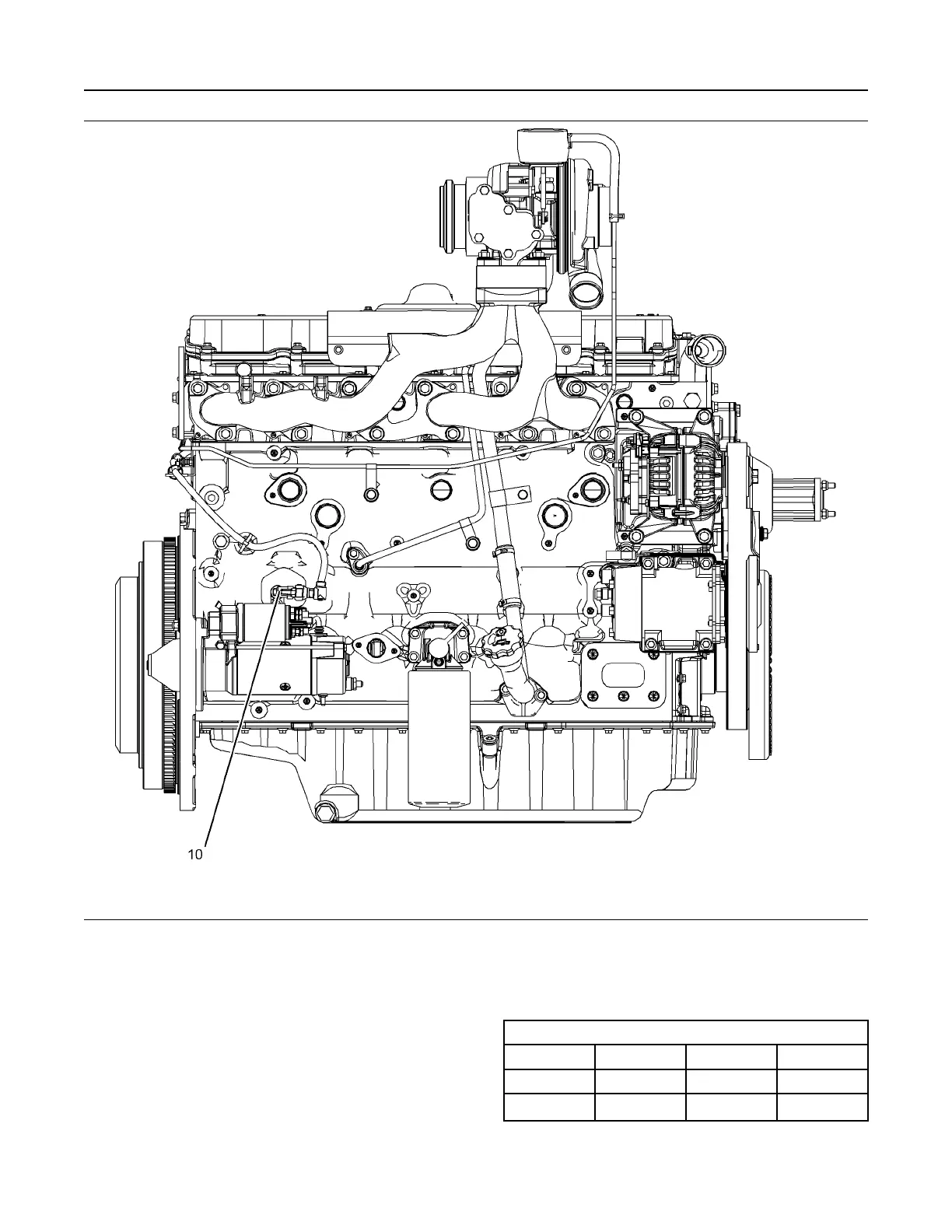

Illustration 10 g03338385
Sensor locations on the right side and top of the engine
(10) Secondary speed/timing sensor
i05357841
Engine Wiring Information
Harness Wire Identification
Perkins identifies all wires with 11 solid colors. The
circuit number is stamped on the wire at a 25 mm
(1 inch) spacing. Table 5 lists the wire colors and the
color codes.
Table 5
Color Codes for the Harness Wire
Color Code Color Color Code Color
BK Black BU Blue
BR Brown PU Purple
(continued)
22 UENR0678
Electronic Troubleshooting
