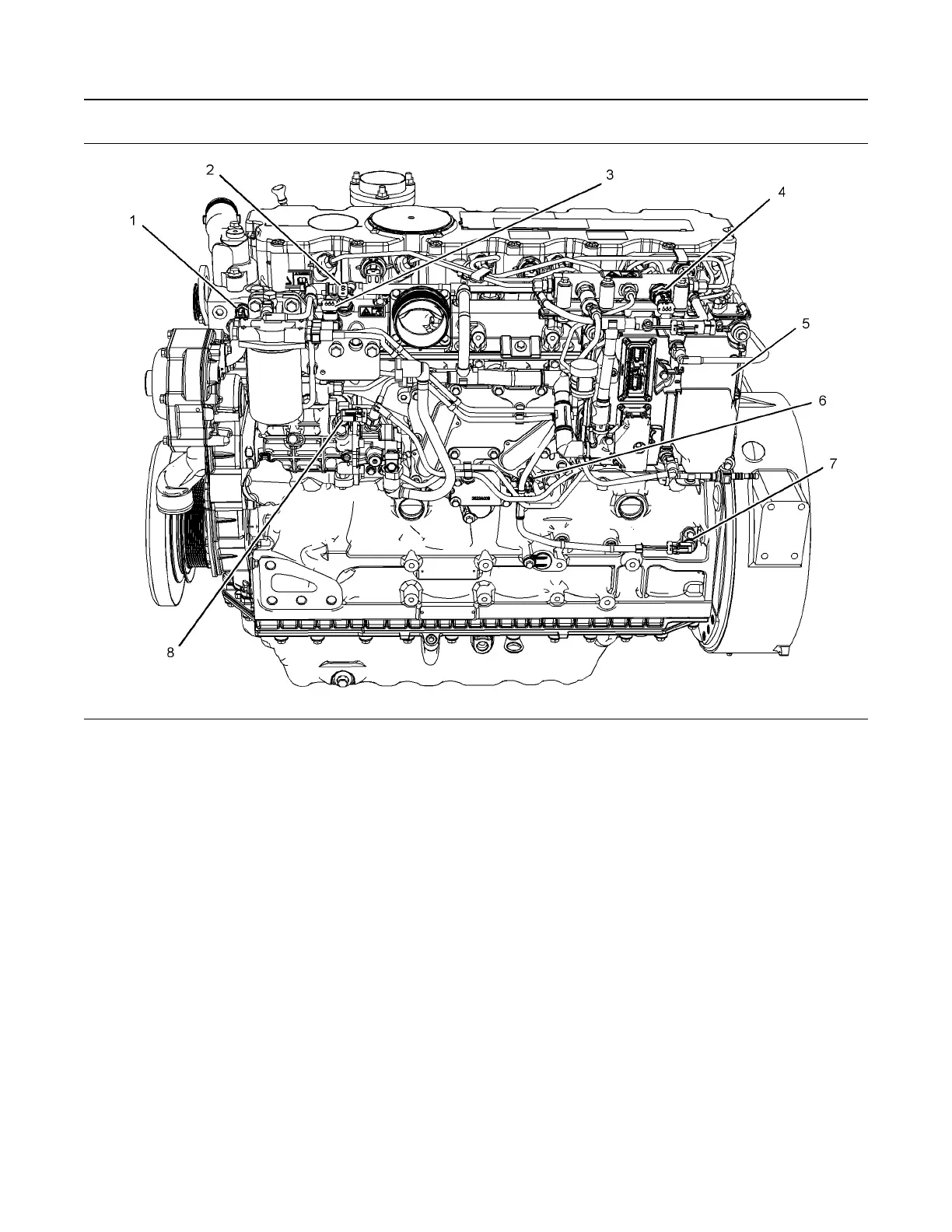

Illustration 27 g01392818
(1) Coolant temperature sensor
(2) Intake manifold air temperature sensor
(3) Intake manifold pressure sensor
(4) Fuel pressure sensor
(5) Electronic control module (ECM)
(6) Oil pressure sensor
(7) Primary position sensor
(8) Secondary position sensor
