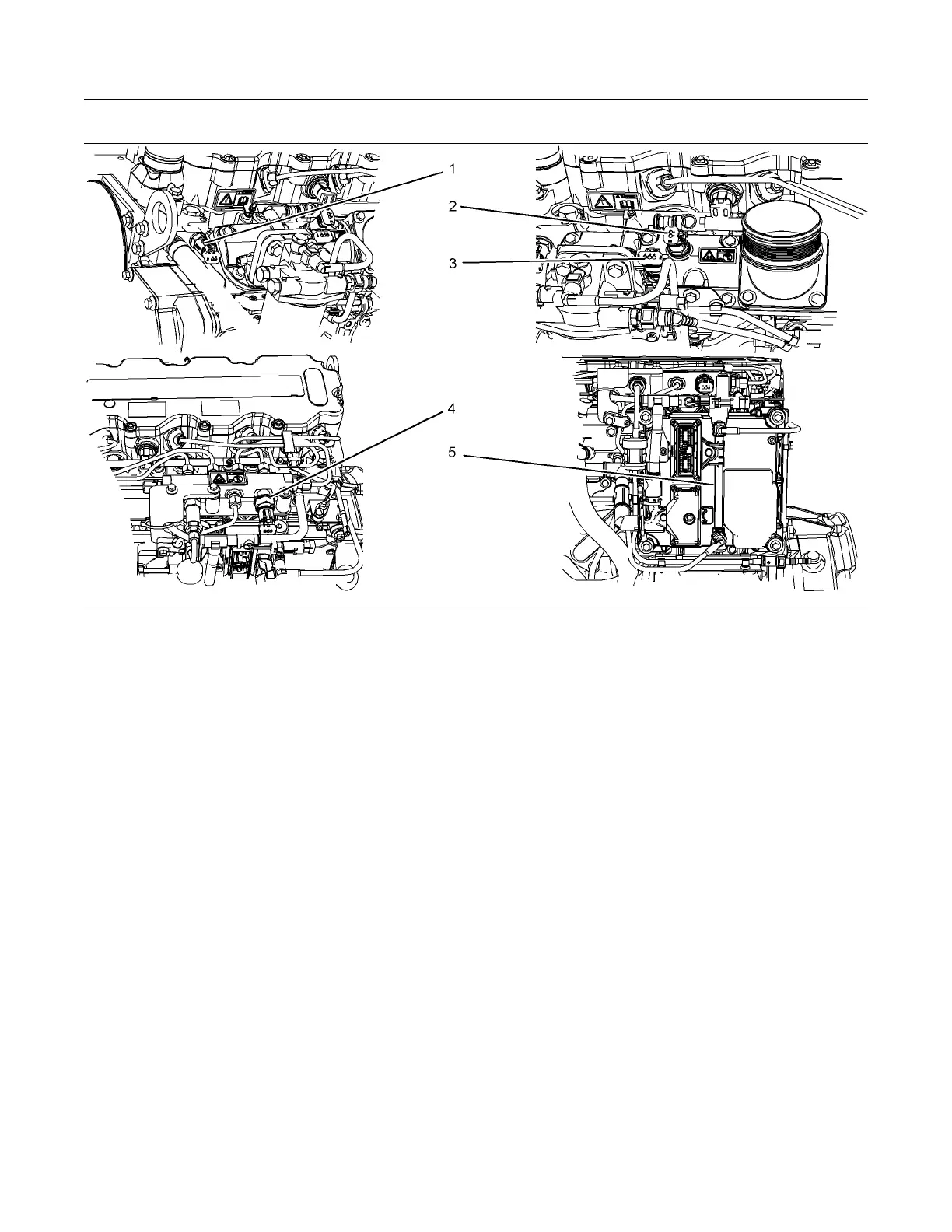

Illustration 28 g01330220
(1) Coolant temperature sensor
(2) Intake manifold air temperature sensor
(3) Intake manifold pressure sensor
(4) Fuel pressure sensor
(5) Electronic control module (ECM)
SEBU8119-04
33
Operation Section
Sensors and Electrical Components
