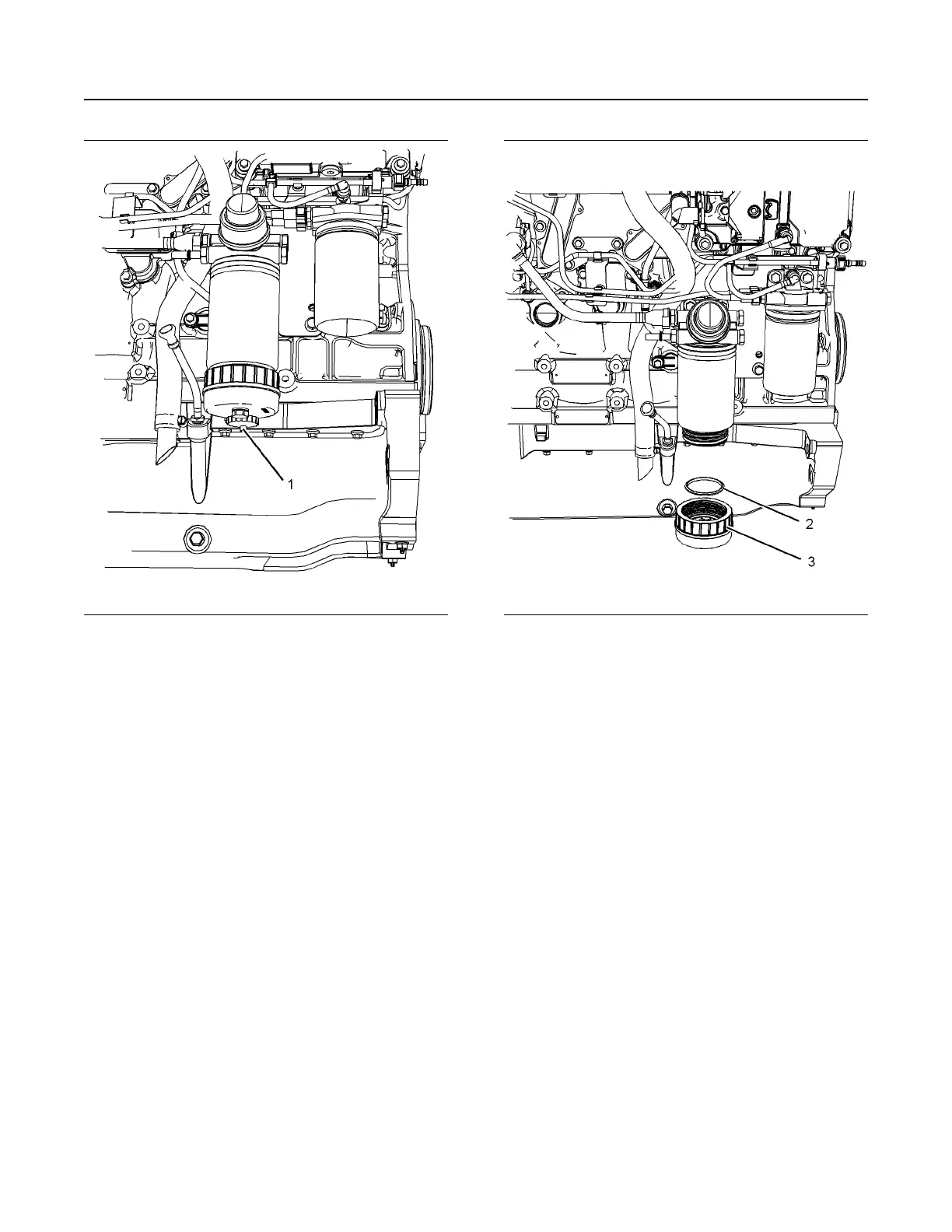

Illustration 58 g01370515
Typical example
3. Install a suitable tube onto the drain (1). Open the
drain (1). Allow the fluid to drain into the container.
Remove the tube.
4. Tighten the drain (1) by hand pressure only.
5. If equipped, remove the wiring harness from the
sensor on the bottom of the bowl (3).
Illustration 59 g01370722
Typical example
6. Rotate the bowl (3) counterclockwise in order to
remove the bowl. Remove the O ring seal (2).
Clean the bowl.
92
SEBU8119-04
Maintenance Section
Fuel System Primary Filter (Water Separator) Element - Replace
