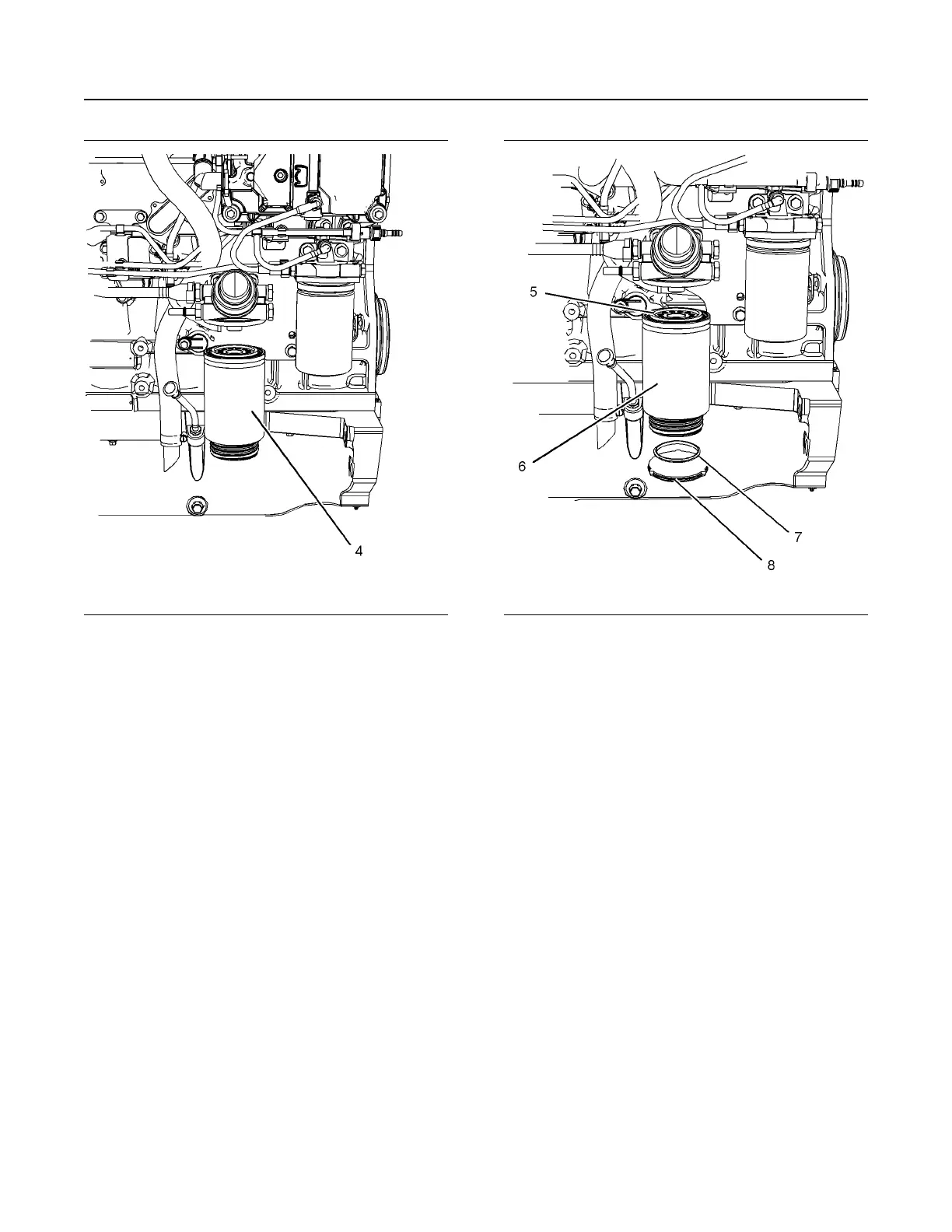

Illustration 60 g01370724
Typical example
7. Use a suitable tool in order to remove the old
canister (4).
Illustration 61 g01371107
Typical example
8. Lubricate the O ring seal (5 ) with clean engine oil
on the new canister. Install the new canister (6).
Spin on the canister until the O ring seal contacts
the sealing surface. Then rotate the canister 360
degree in order to tighten the canister correctly.
9. Remove the cap (8) from the threaded end of the
new canister and remove the new O ring seal (7).
Install the new O ring seal into the bowl (3).
10. Lubricate the O ring seal (7) with clean engine oil.
Install the bowl onto the new canister. Tighten the
bowl to 15 N·m (11 lb ft).
11. If equipped, install the wiring harness to the
sensor. Open the fuel supply valve.
12. Remove the container and dispose of the fluid in
a safe place.
SEBU8119-04
93
Maintenance Section
Fuel System Primary Filter (Water Separator) Element - Replace
