5. Operate the engine, allow the engine to reach
normal operating temperature. Stop the engine.
Check the coolant level, refer to this Operation
and Maintenance Manual, “Coolant Level - Check”
for more information.
6. Check the fan tip clearance in position (1) and
position (4). The fan tip clearance should be
14 ± 2 mm (0.55 ± 0.079 inch).
7. Fan tip clearance at position (2) and (3) must be
14 ± 2 mm (0.55 ± 0.079 inch).
In Service Information
Ensure that the engine is stopped. Ensure that the
cooling system is full.

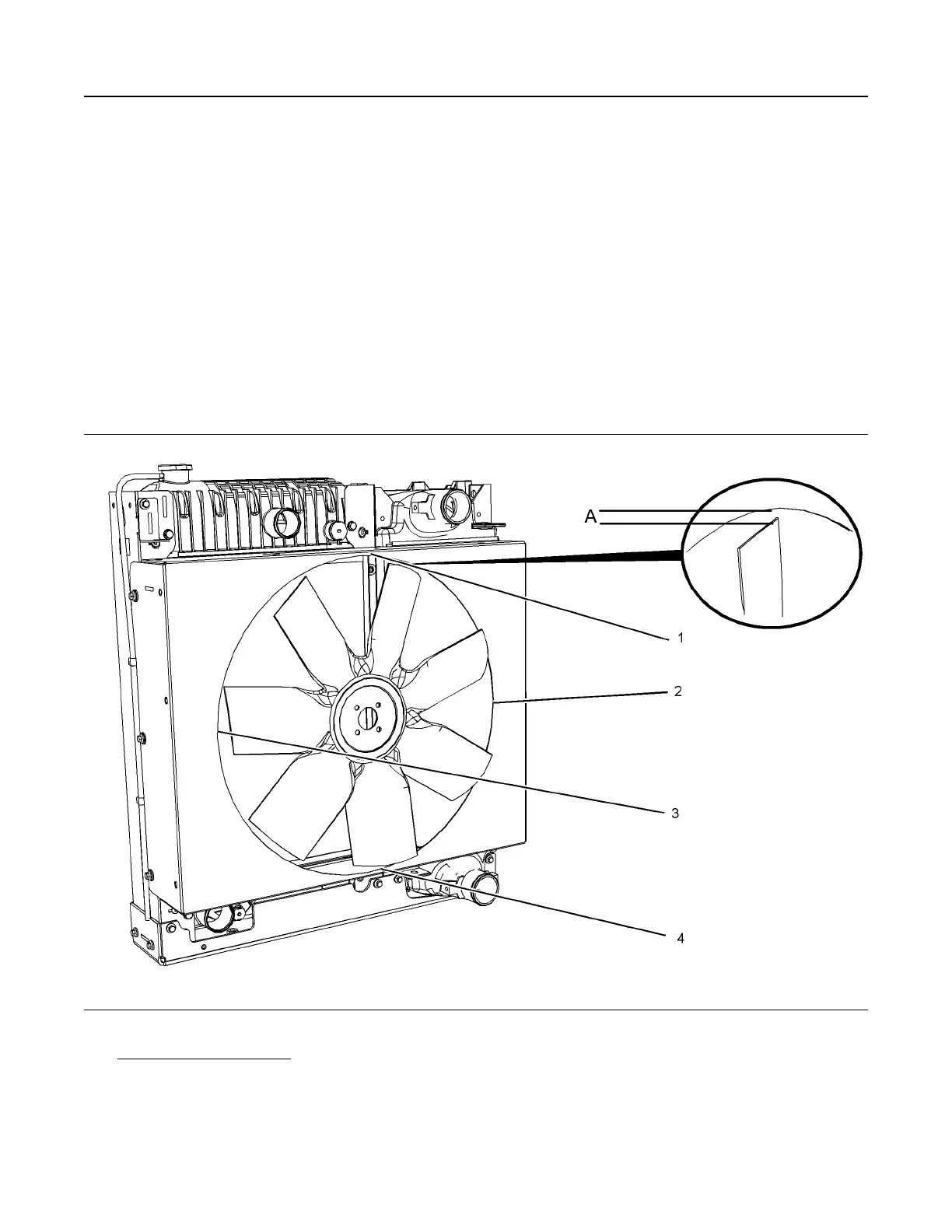

Illustration 78 g03609316
• A is the fan tip clearance
1. Set the fan tip clearance at position (1) to
14 ± 2 mm (0.55 ± 0.079 inch).
2. Set the fan tip clearance at position (4) to
14 ± 2 mm (0.55 ± 0.079 inch).
124
SEBU9063-07
Maintenance Section
Fan Clearance - Check
