Perkins 1204F-E44TA - Fan Clearance - Check

4. Remove the engine oil level gauge to check the oil
level. Maintain the oil level between “L” and “H”
marks on the engine oil level gauge. Do not fill the
crankcase above the “H” mark.
i05685634
Fan Clearance - Check
Commissioning Information
Fan tip clearance at commissioning must be set with
the radiator empty.

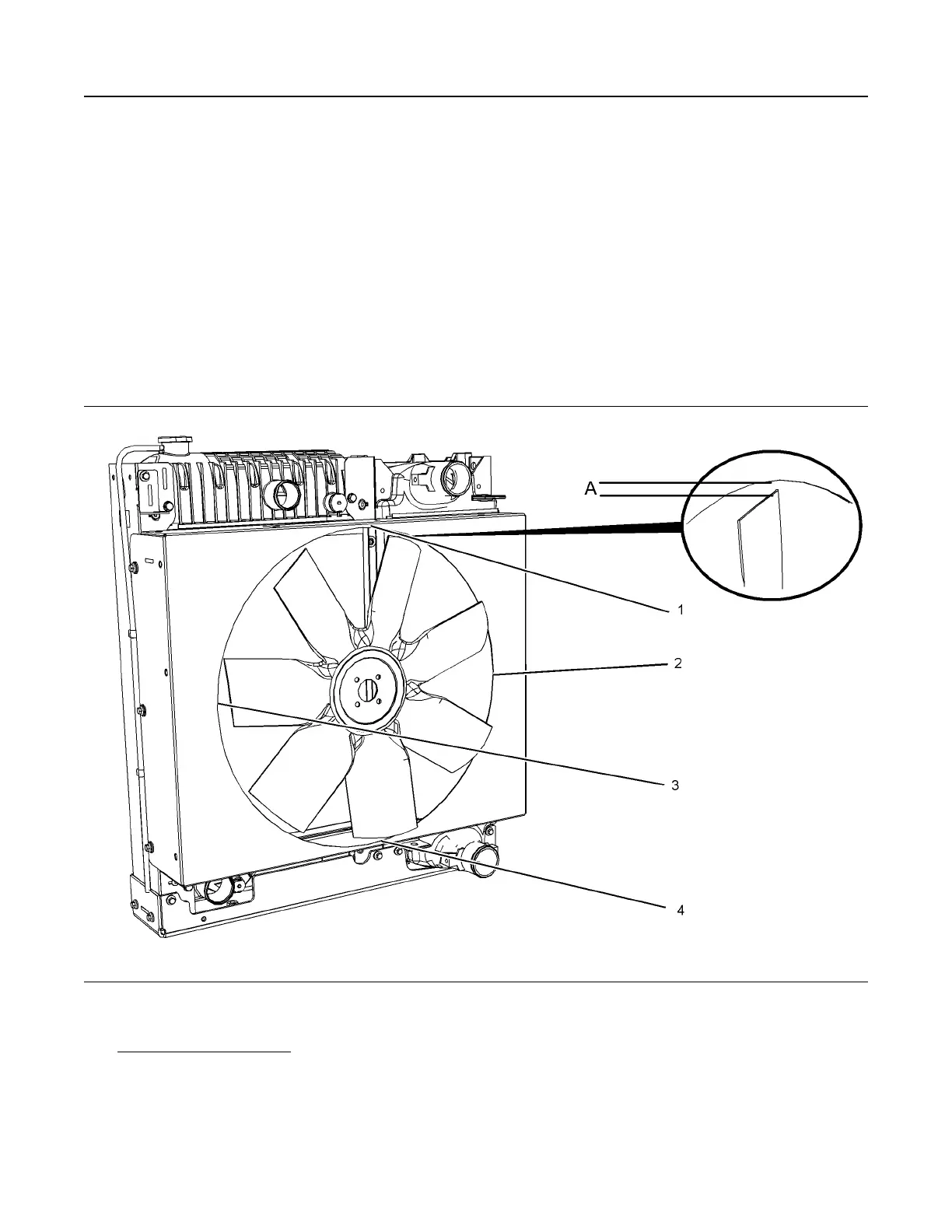

Illustration 77 g03609316
Typical example
• A is the fan tip clearance
1. Set the fan tip clearance at position (1) to 16 mm
(0.63 inch).
2. Set the fan tip clearance at position (4) to 12 mm
(0.47 inch).
3. Fan tip clearance at position (2) and (3) must be
14 ± 2 mm (0.55 ± 0.079 inch).
4. Fill the cooling system, for more information refer
to this Operation and Maintenance Manual, “Fluid
Recommendations” for coolant specification.
SEBU9063-07
123
Maintenance Section
Fan Clearance - Check
