(3) Front lifting eye
(4) Alternator
(5) Refrigerant compressor
(6) High-pressure turbocharger
(7) Low-pressure turbocharger
(8) Engine oil drain
(9) Flywheel housing
(10) Flywheel
(11) NRS cooler

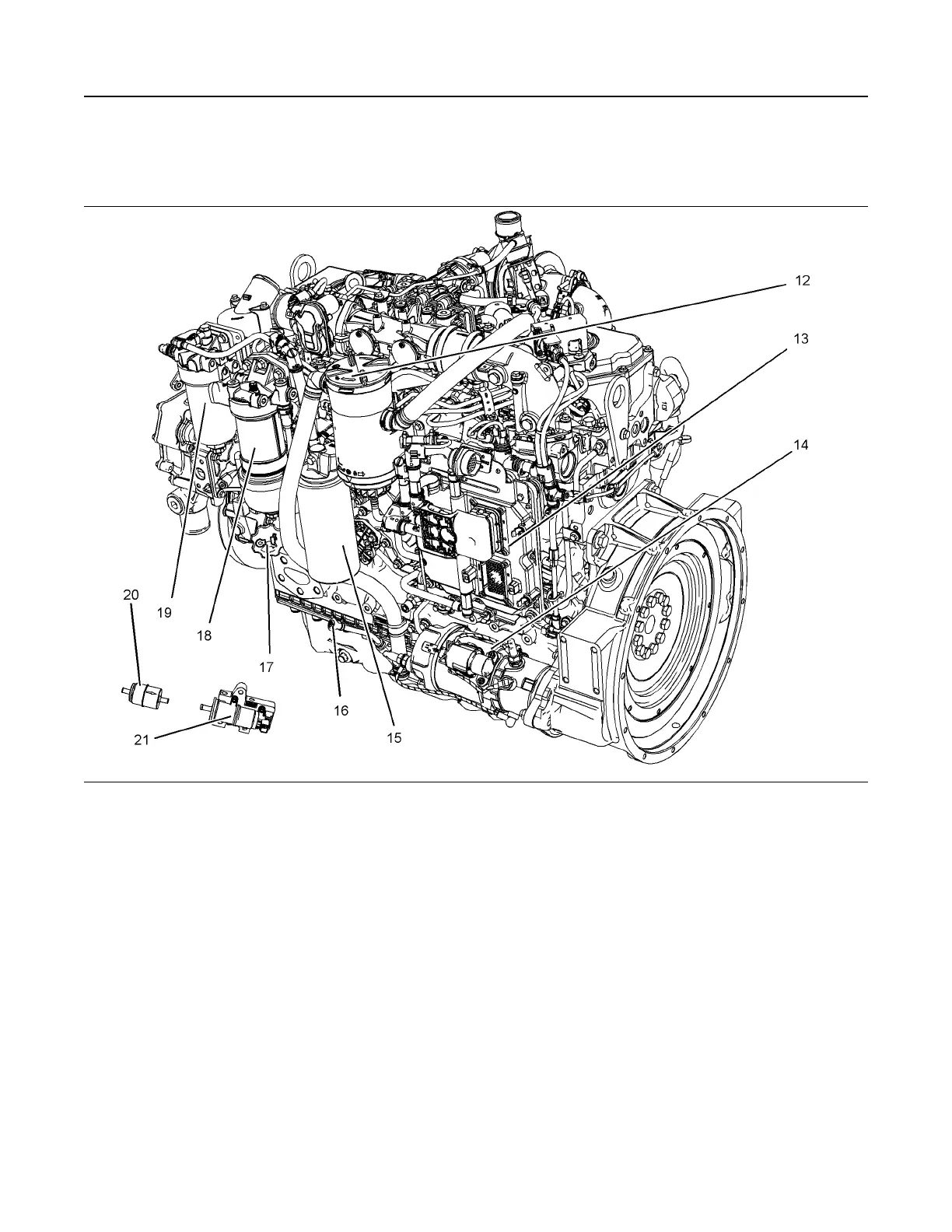

Illustration 18 g02150185
Typical example
(12) Crankcase breather
(13) Electronic control module (ECM)
(14) Starting motor
(15) Oil filter
(16) Oil gauge
(17) Oil filler
(18) Primary fuel filter
(19) Secondary fuel filter
(20) In-line fuel strainer
(21) Electric fuel priming pump
The location of the in-line fuel strainer (20) and the
priming pump (21) will depend on the application.
22
SEBU8601-04
Product Information Section
Model View Illustrations
