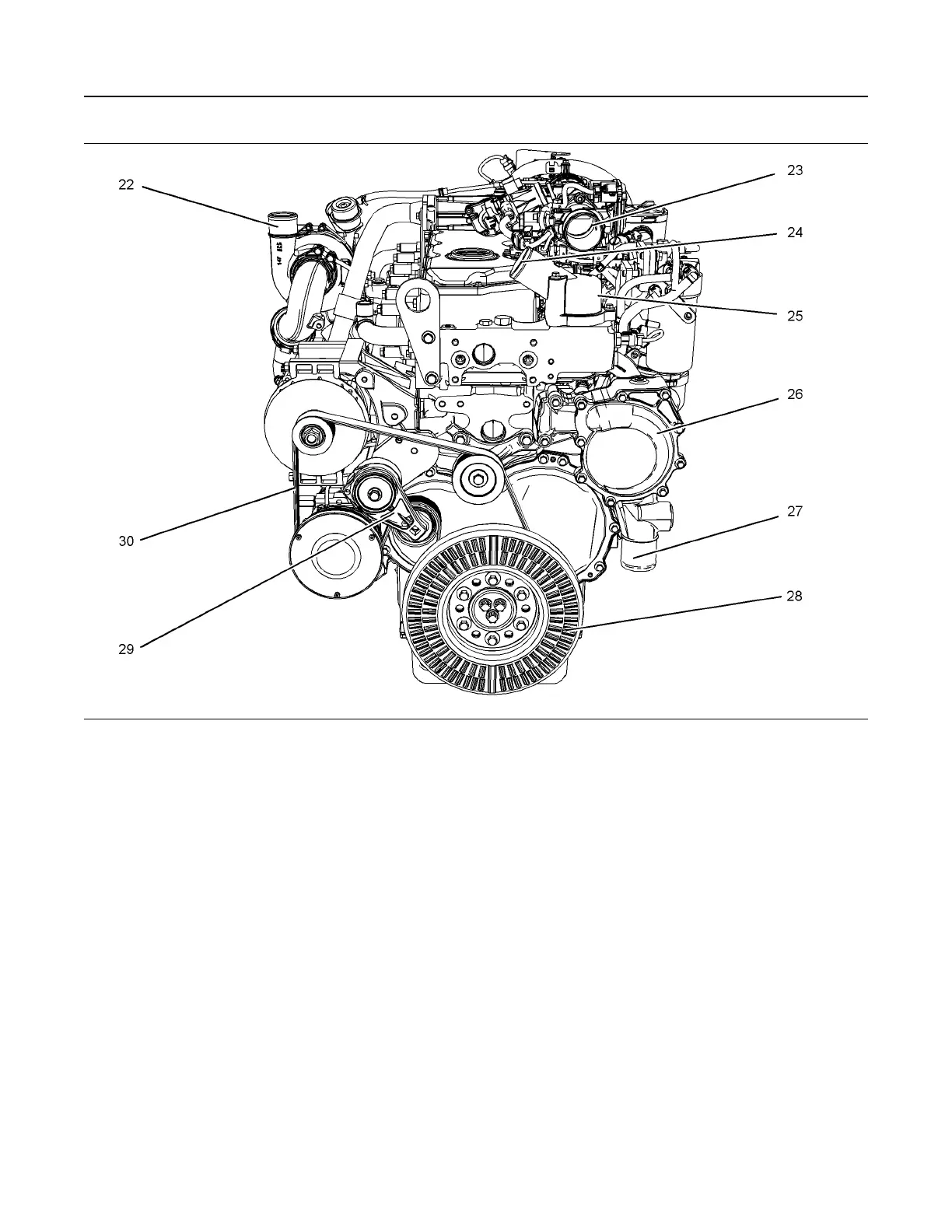

Illustration 19 g02150187
Typical example
(22) Outlet connection to the air to air
charge cooler
(23) Connection for the air inlet
(24) Outlet connection for the coolant
(25) Housing for the water temperature
regulator
(26) Water pump
(27) Inlet connection for the Coolant
(28) Vibration damper
(29) Belt tensioner
(30) Belt
Engine Aftertreatment System
The following view shows typical features of the
engine aftertreatment system. Due to individual
applications, your system may appear different from
the illustrations.
SEBU8601-04
23
Product Information Section
Model View Illustrations
