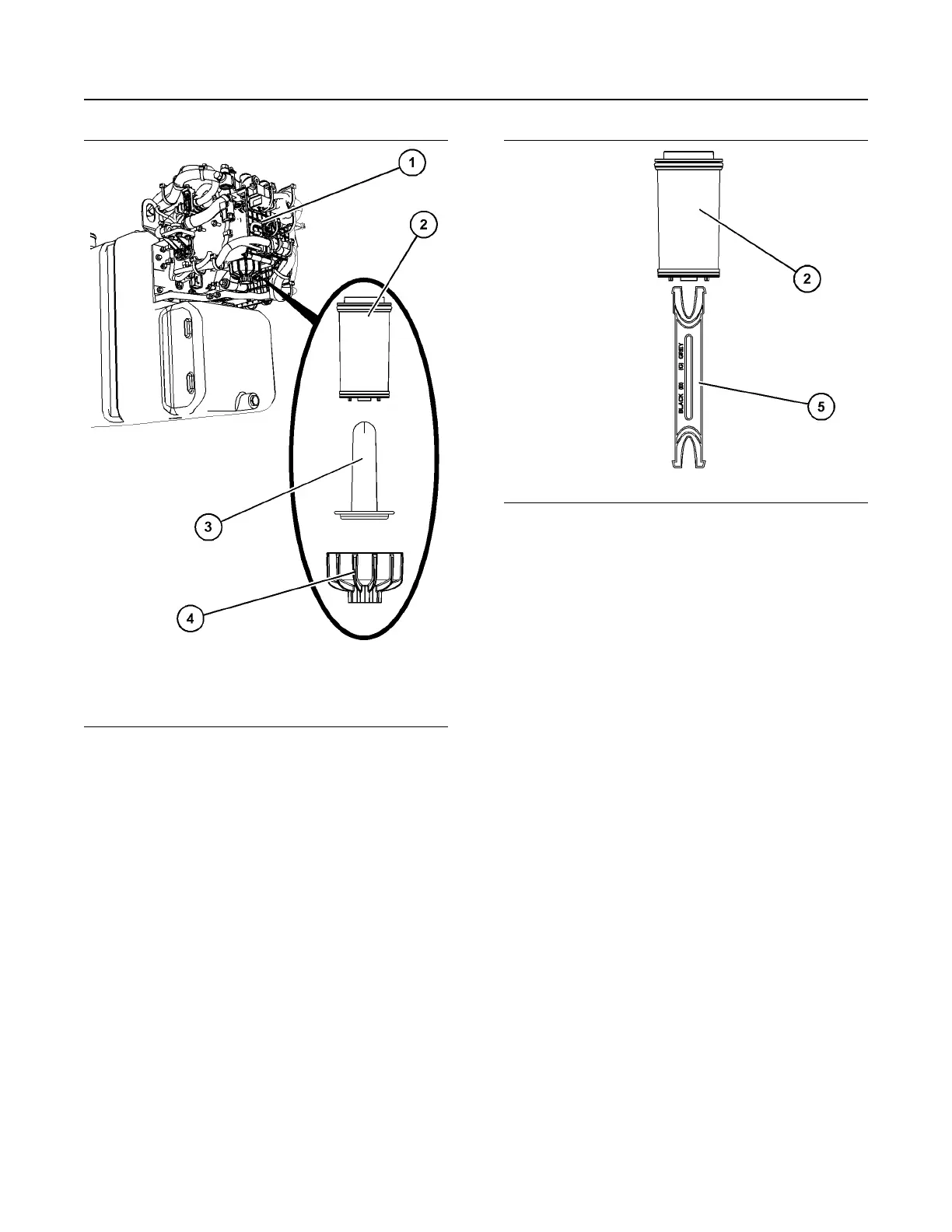

Illustration 96 g06215651
Typical example
1. Ensure that the area around the DEF filter is clean
and free from dirt. Use a 27mm Bi-Hex socket to
remove filter cap (4).
2. Remove the expansion device (3).
Illustration 97 g06215916
Typical example
3. Use supplied tool (5) to remove filter element (2)
from DEF pump assembly (1).
Note: Avoid twisting the diesel exhaust fluid filter
upon removal. Twisting may cause a tear.
4. Lubricate seals of new DEF filter (2) with diesel
exhaust fluid or distilled water.
5. Install new filter element (2) into DEF pump
assembly (1).
6. Install expansion device (3) into filter element (2).
Install filter cap (4) and tighten cap to 20 N·m
(15 lb ft).
M0087475-06 107
Maintenance Section
Diesel Exhaust Fluid Filter (Emission Related Component) - Replace
