i07201709
Features and Controls
Monitoring System
The monitoring system is designed to alert the
operator to an immediate problem with any of the
engine systems that are monitored. The monitoring
system is also designed to alert the operator to an
impending problem with any of the engine systems
that are monitored. The monitoring system can be
accessed by the electronic service tool. For more
information on the electronic service tool, refer to
Troubleshooting, “Electronic Tools”.

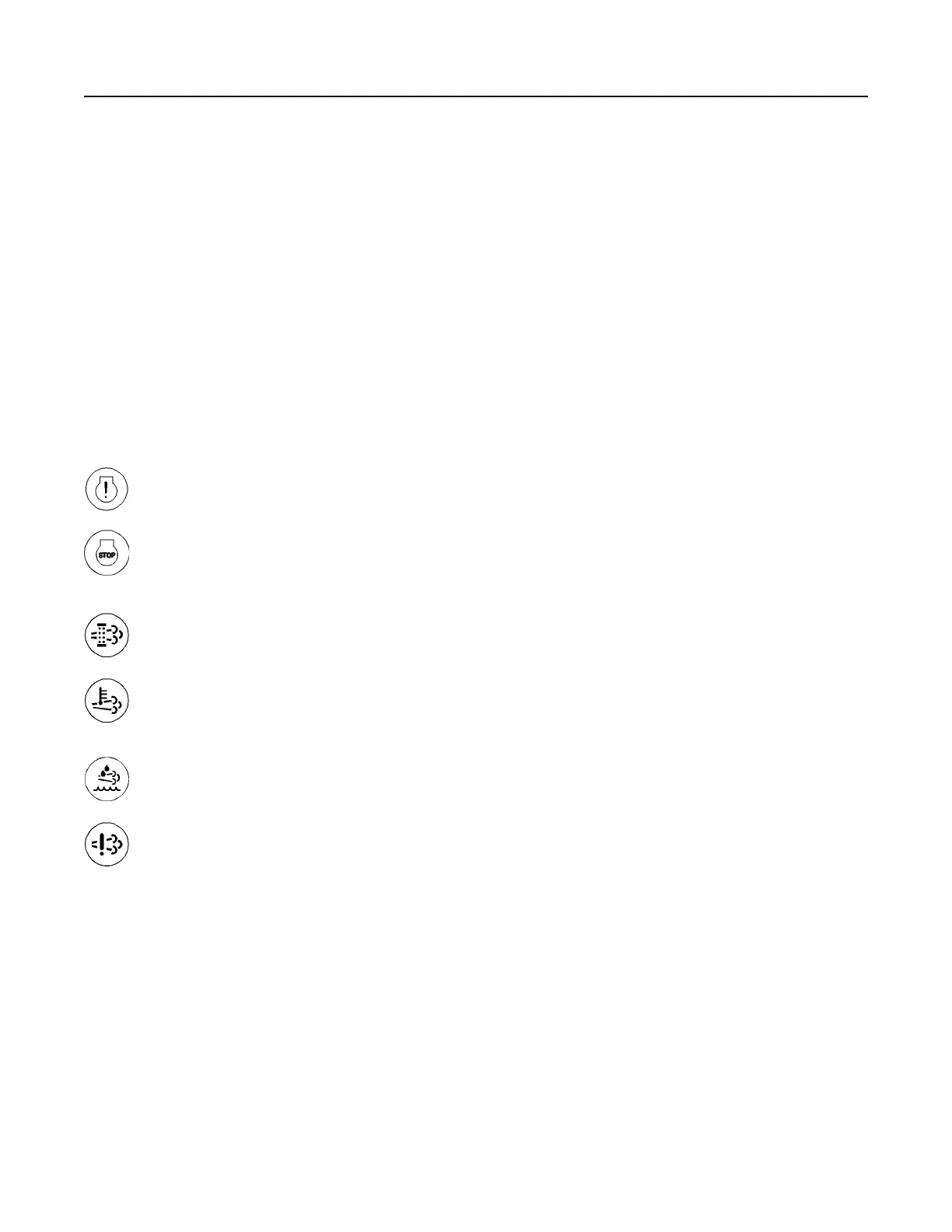

Monitoring System Indicators
Engine Malfunction – This indicator
illuminates when there is a fault with the
engine or after treatment system.
Engine STOP – This indicator will
illuminate solid when a level 3 warning
fault has been detected by the
monitoring system.
Diesel Particulate Filter (DPF) – This
indicator will illuminate to show that
regeneration is needed.
Regeneration Active – This indicator will
illuminate to show that regeneration is
active and exhaust temperatures are
elevated.
Diesel Exhaust Fluid (DEF) Level – This
gauge shows the amount of DEF in the
DEF tank.
Emission Malfunction Indicator – This
indicator will illuminate when an
emissions system related to DEF or SCR
has failed. Refer to Operation and Maintenance
Manual, “Selective Catalytic Reduction Warning
System” for more information.
i07243630
Sensors and Electrical
Components
The illustrations within the following sections are
typical location of the sensors or electrical
components for an industrial engine. Specific
engines may appear different due to differences in
applications.
M0087475-06 41
Operation Section
Features and Controls
