Engine Views

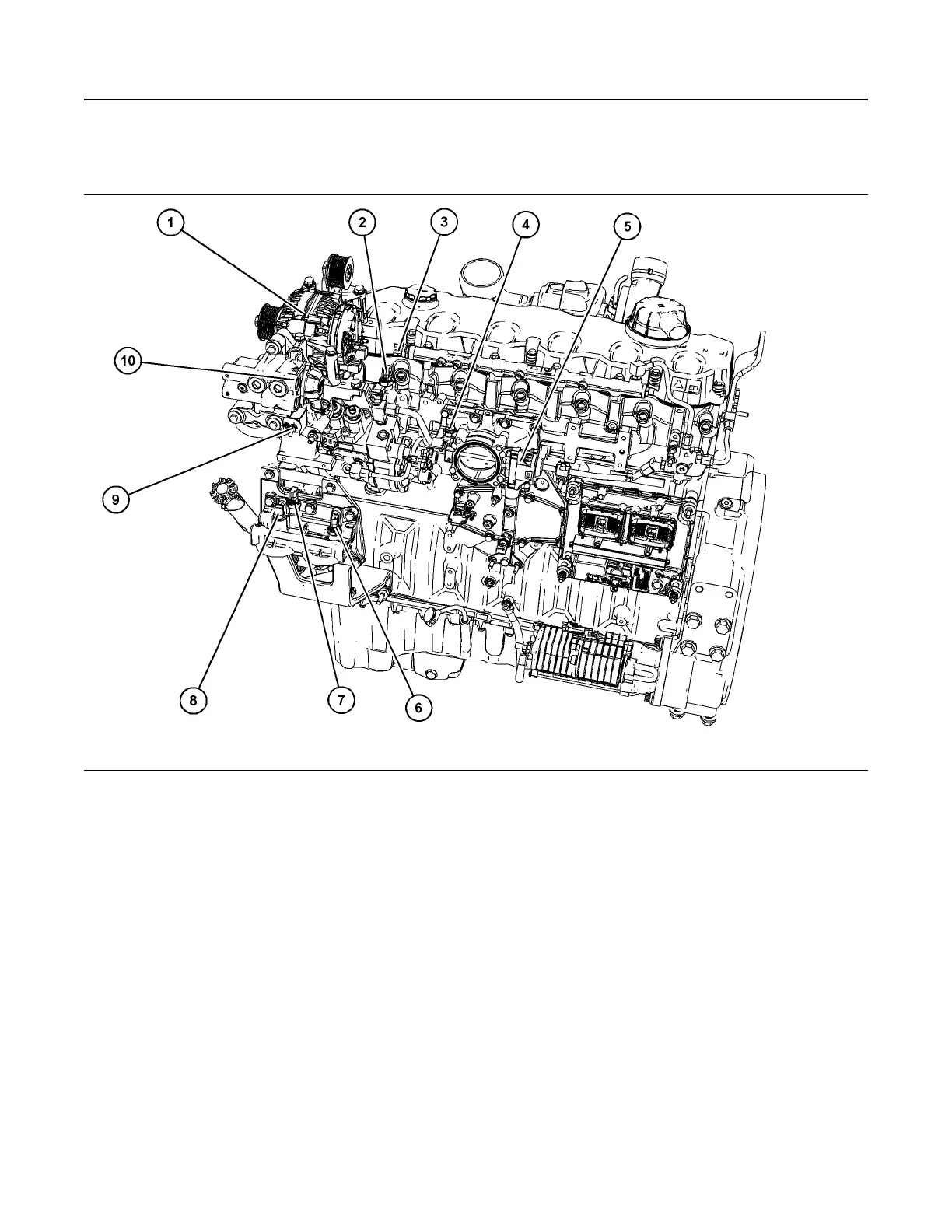

Illustration 45 g06263600
Typical example
(1) Alternator
(2) Intake manifold pressure sensor
(3) Fuel rail pressure sensor
(4) Atmospheric pressure sensor
(5) Intake throttle valve
(6) Fuel pressure before filter
(7) Fuel temperature sensor
(8) Fuel pressure after filter
(9) Remote fuel priming switch
(10) Fuel priming pump
42 M0087475-06
Operation Section
Sensors and Electrical Components
