Aftertreatment System Views

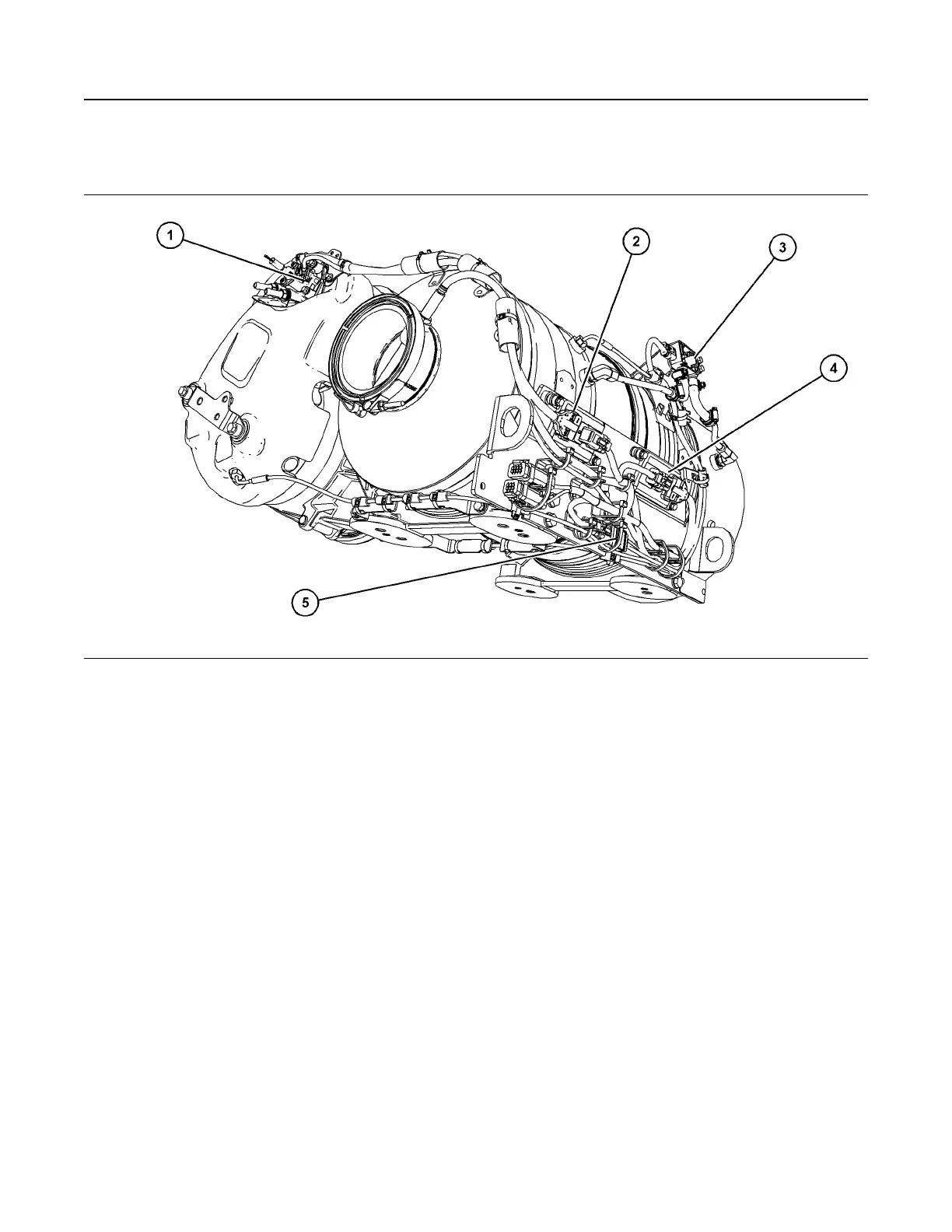

Illustration 48 g06263677
Typical example
(1) Diesel Exhaust Fluid (DEF) injector
(2) Post NOx sensor
(3) Differential pressure sensor
(4) NOx sensor
(5) Temperature sensor
