Engine

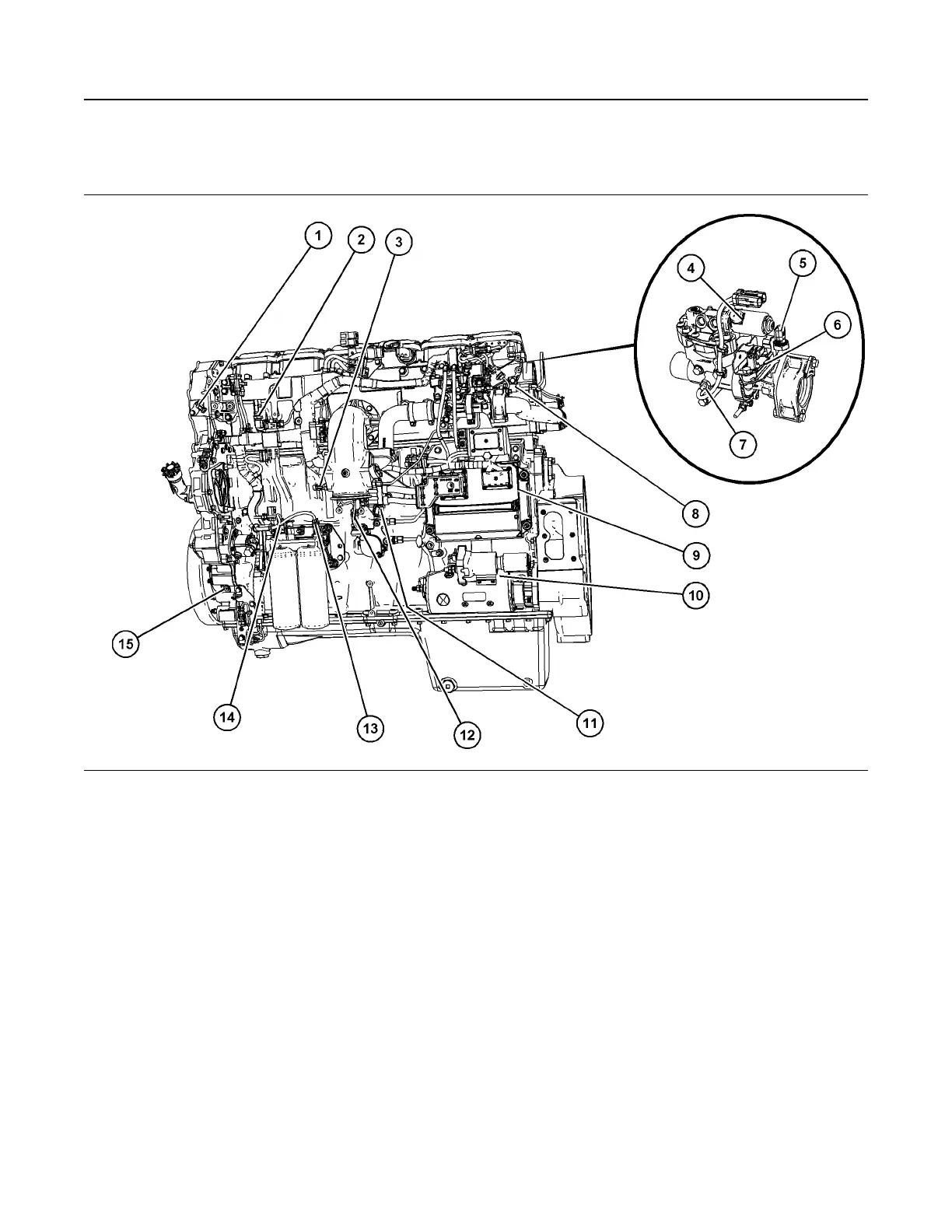

Illustration 30 g06130474
Typical example
(1) Secondary Speed/timing sensor
(2) Boost pressure sensor
(3) Inlet air temperature sensor
(4) NOx Reduction System (NRS) solenoid
(5) NRS pressure sensor
(6) NRS differential pressure sensor
(7) NRS temperature sensor
(8) Air control solenoid valve
(9) Electronic control module
(10) Starter solenoid and starting motor
(11) Oil pressure sensor
(12) Barometer pressure sensor
(13) Fuel pressure sensor
(14) Fuel temperature sensor
(15) Primary speed/timing sensor
M0076814-03 33
Operation Section
Sensors and Electrical Components
