Operation Section
Lifting and Storage
Product Lifting

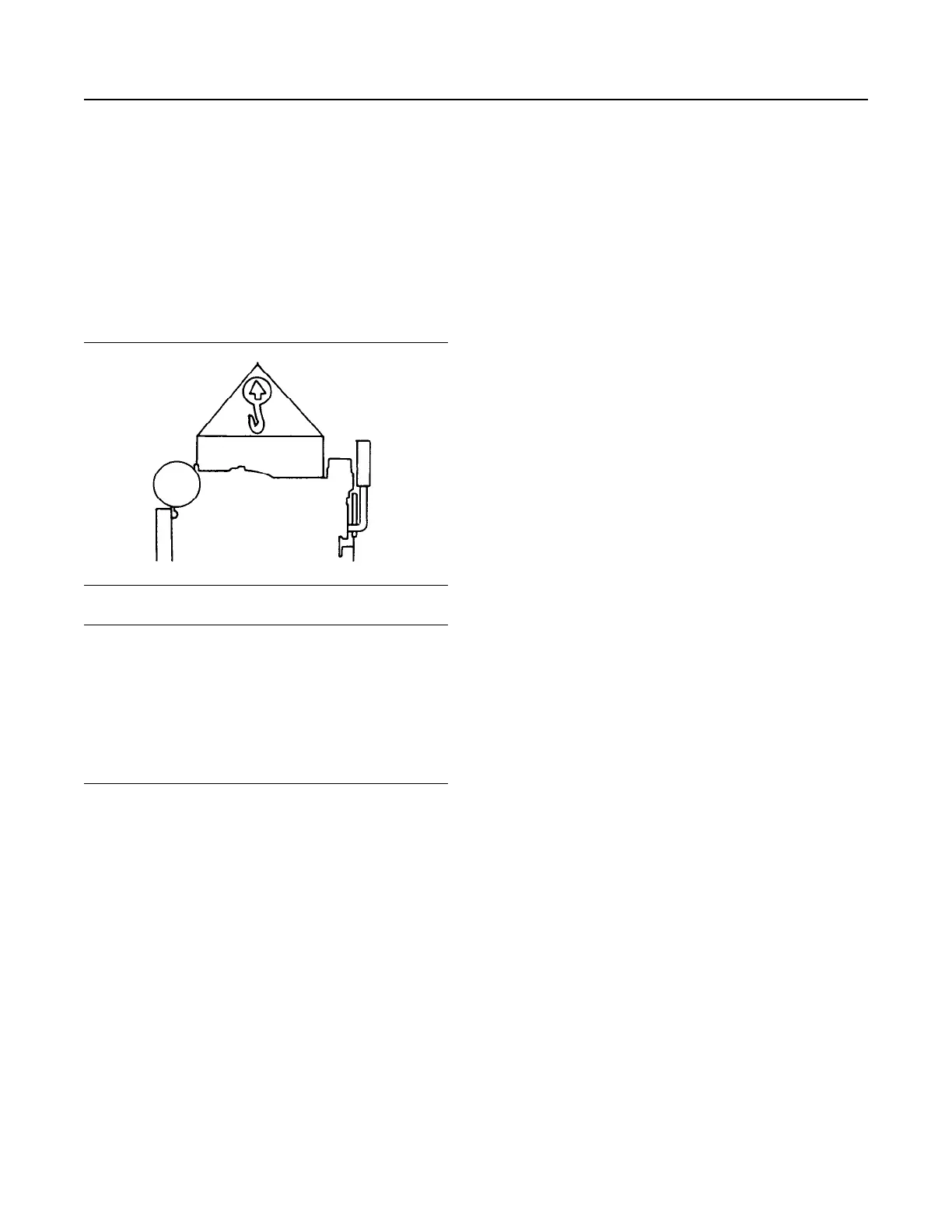

Illustration 25 g00103219
NOTICE
Always inspect lifting eyebolts and all other lifting
equipment for damage before performing any lifting.
Never bend the eyebolts and the brackets. Never
perform product lifting if components are damaged.
Only load the eyebolts and the brackets under ten-
sion. Remember that the capacity of an eyebolt is
less as the angle between the supporting members
and the object becomes less than 90 degrees.
Use a hoist to remove heavy components. Use an
adjustable lifting beam to lift the engine. All
supporting members (chains and cables) should be
parallel to each other. The chains and cables should
be perpendicular to the top of the object that is being
lifted.
Some removals require lifting the fixtures to obtain
proper balance and safety.
To remove the engine ONLY, use the lifting eyes that
are on the engine.
Lifting eyes are designed and installed for the
specific engine arrangement. Alterations to the lifting
eyes and/or the engine make the lifting eyes and the
lifting fixtures obsolete. If alterations are made,
ensure that proper lifting devices are provided.
Consult your Perkins distributor for information
regarding fixtures for proper engine lifting.
