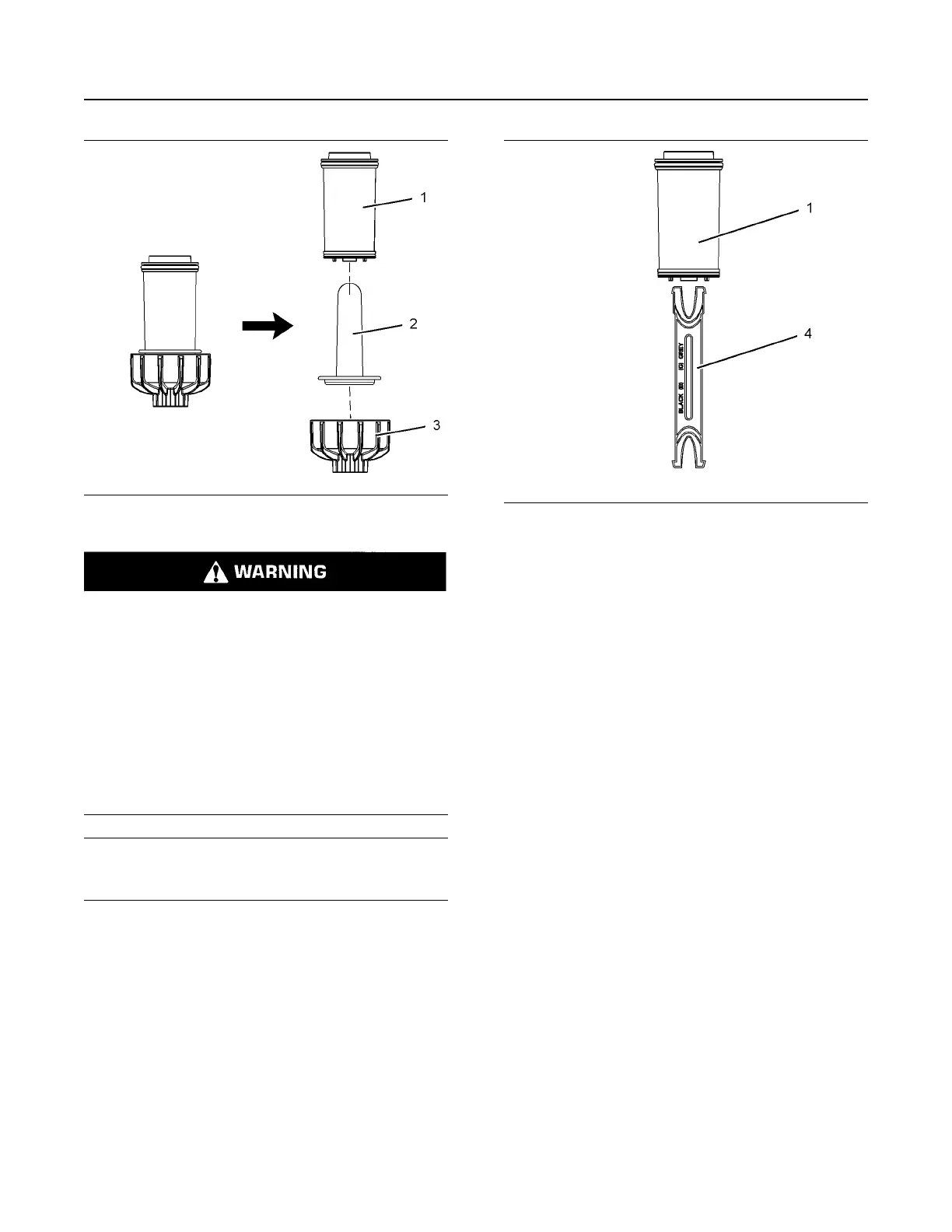

Illustration 81 g03332612
Typical Example
Personal injury can result from improper han-
dling of chemicals.
Make sure you use all the necessary protective
equipment required to do the job.
Make sure that you read and understand all direc-
tions and hazards described on the labels and
material safety data sheet of any chemical that is
used.
Observe all safety precautions recommended by
the chemical manufacturer for handling, storage,
and disposal of chemicals.
NOTICE
Ensure that the engine is stopped before any servic-
ing or repair is performed.
1. Remove the DEF filter cap (3) with a 27mm Bi-Hex
socket.
2. Remove the rubber cone insert (2) from the DEF
filter (1).
Illustration 82 g03332637
Typical Example
3. Insert the DEF filter removal tool (4) into the DEF
filter (1) and remove the DEF filter (1).
Note: Avoid twisting the DEF filter (1) upon removal.
Twisting may cause a tear.
4. Clean the area around the filter housing.
5. Lubricate the seals of the new DEF filter (1) with
diesel exhaust fluid or distilled water.
6. Install new DEF filter (1) and rubber cone insert.
Note: Avoid twisting the DEF filter (1) upon
installation. Twisting may cause a tear.
7. Install the cap (3). Torque the cap to 20 N·m
(177 lb in).
M0076814-03 93
Maintenance Section
Diesel Exhaust Fluid Filter (Emission Related Component) - Replace
