Lubrication System
i06512672
Lubrication System
Lubrication System Components

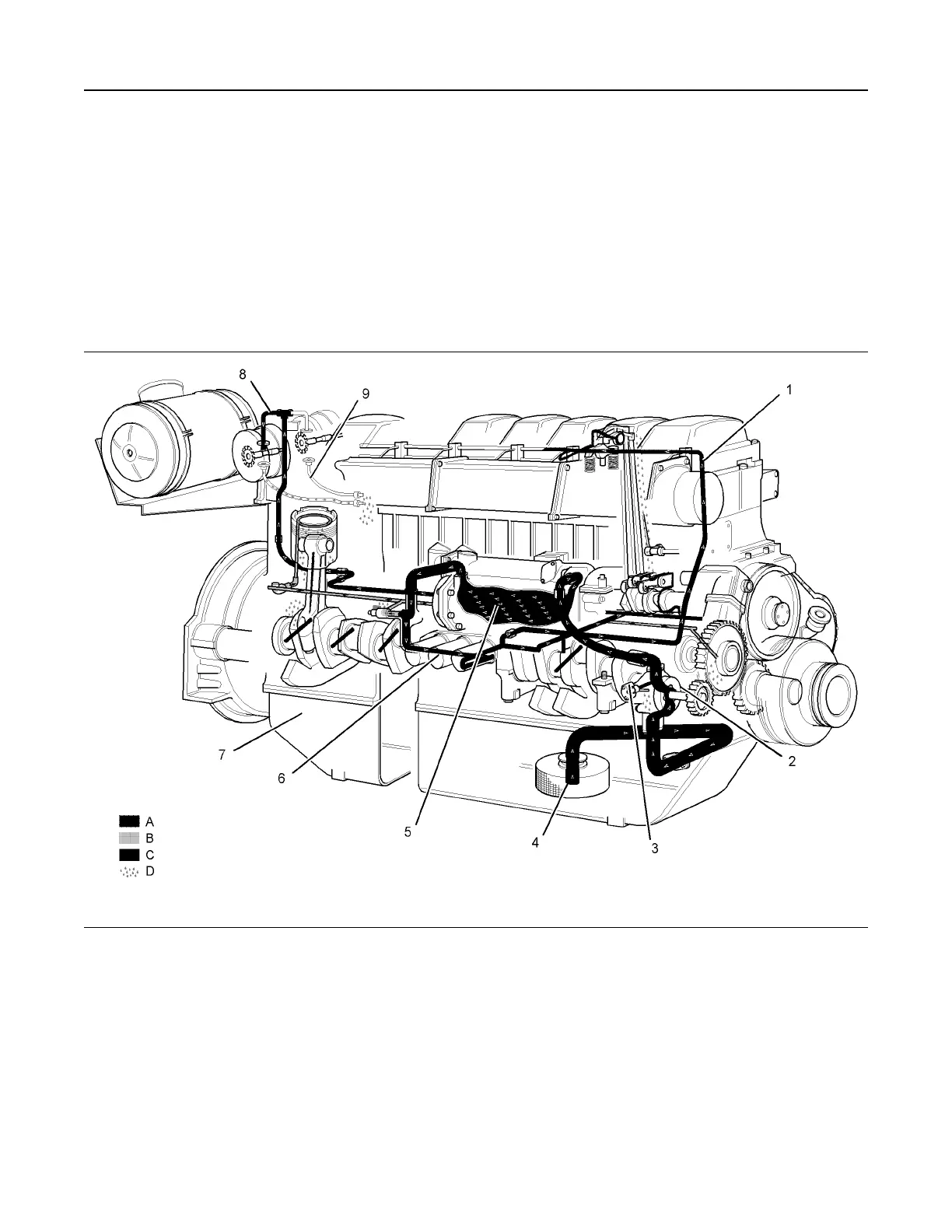

Illustration 2 g01372216
Typical example of the lubrication system components
(A) Oil pressure circuit
(B) Oil circuit for piston cooling
(C) Oil pressure relief
(D) Oil return to sump
(1) Oil supply line for rocker shafts
(2) Engine oil pump
(3) Engine oil relief valve
(4) Strainer
(5) Oil cooler
(6) Oil filters
(7) Engine oil pan
(8) Oil supply line for turbocharger
(9) Oil return line for turbocharger
M0064276
7
Lubrication System
