Perkins 404C-22T Service Manual

403C-15 Engine

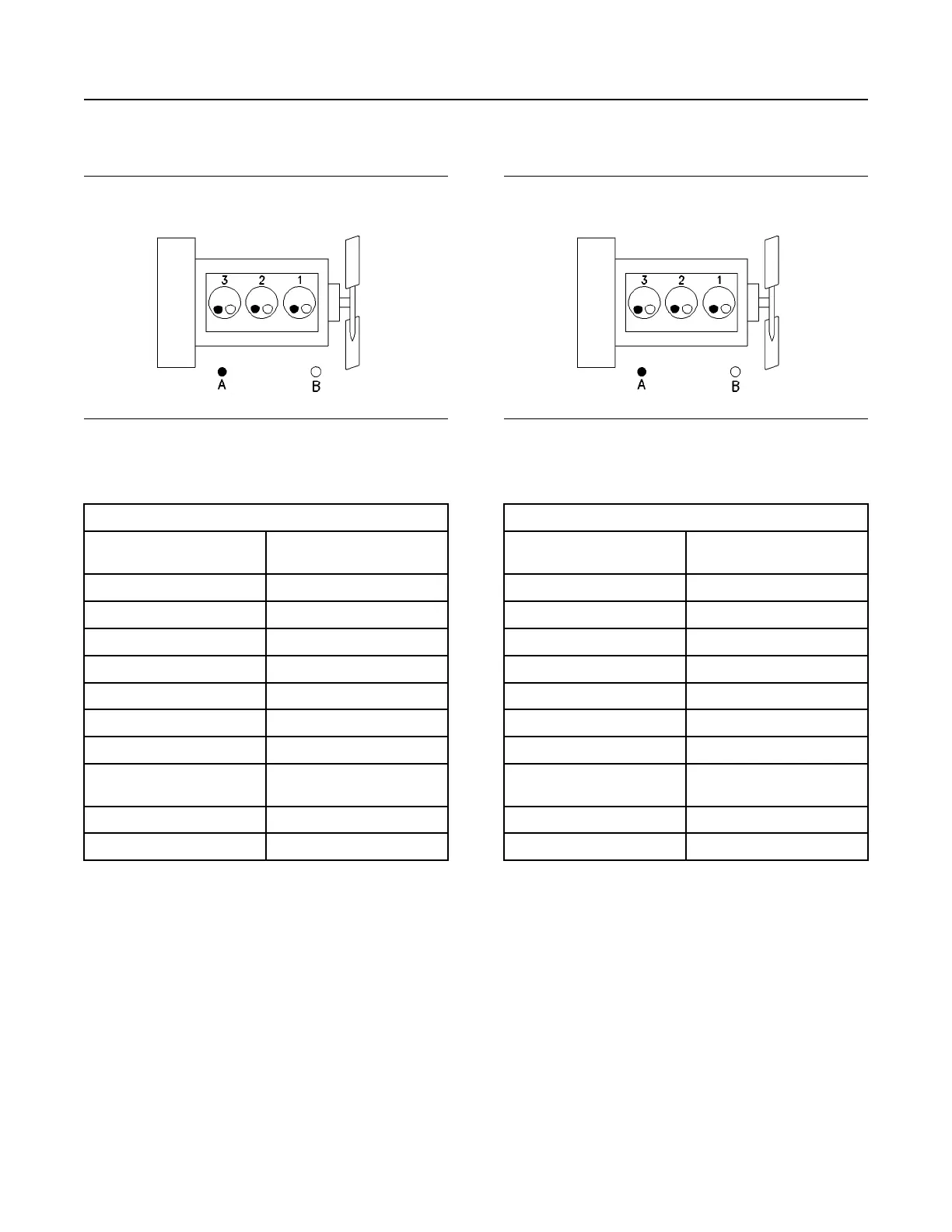

Illustration 19 g00852304
(A) Exhaust valves
(B) Inlet valves
Table 4
403C-15 Engine Specifications
Maximum Operating Speed
(rpm)
3000 rpm
Cylinders and Arrangement In-Line three cylinder
Bore 84 mm (3.31 inch)
Stroke 90 mm (3.54 inch)
Displacement 1.496 L (91.291 in
3
)
Aspiration
NA
(1)
Compression Ratio
22.5:1
Firing Order
1-2-3
Rotation that is viewed from the
flywheel
Counterclockwise
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
(1)
Naturally Aspirated
403C-17 Engine
Illustration 20 g00852304
(A) Exhaust valves
(B) Inlet valves
Table 5
403C-17 Engine Specifications
Maximum Operating Speed
(rpm)
2600 rpm
Cylinders and Arrangement In-Line three cylinder
Bore 84 mm (3.31 inch)
Stroke 100 mm (3.94 inch)
Displacement 1.66 L (101.3 in
3
)
Aspiration
NA
(1)
Compression Ratio
22.5:1
Firing Order
1-2-3
Rotation that is viewed from the
flywheel
Counterclockwise
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
(1)
Naturally Aspirated
SEBU7992-05
21
Product Information Section
Engine Description

Perkins 404C-22T Specifications
