Perkins 404C-22T Service Manual

404C-15 Engine

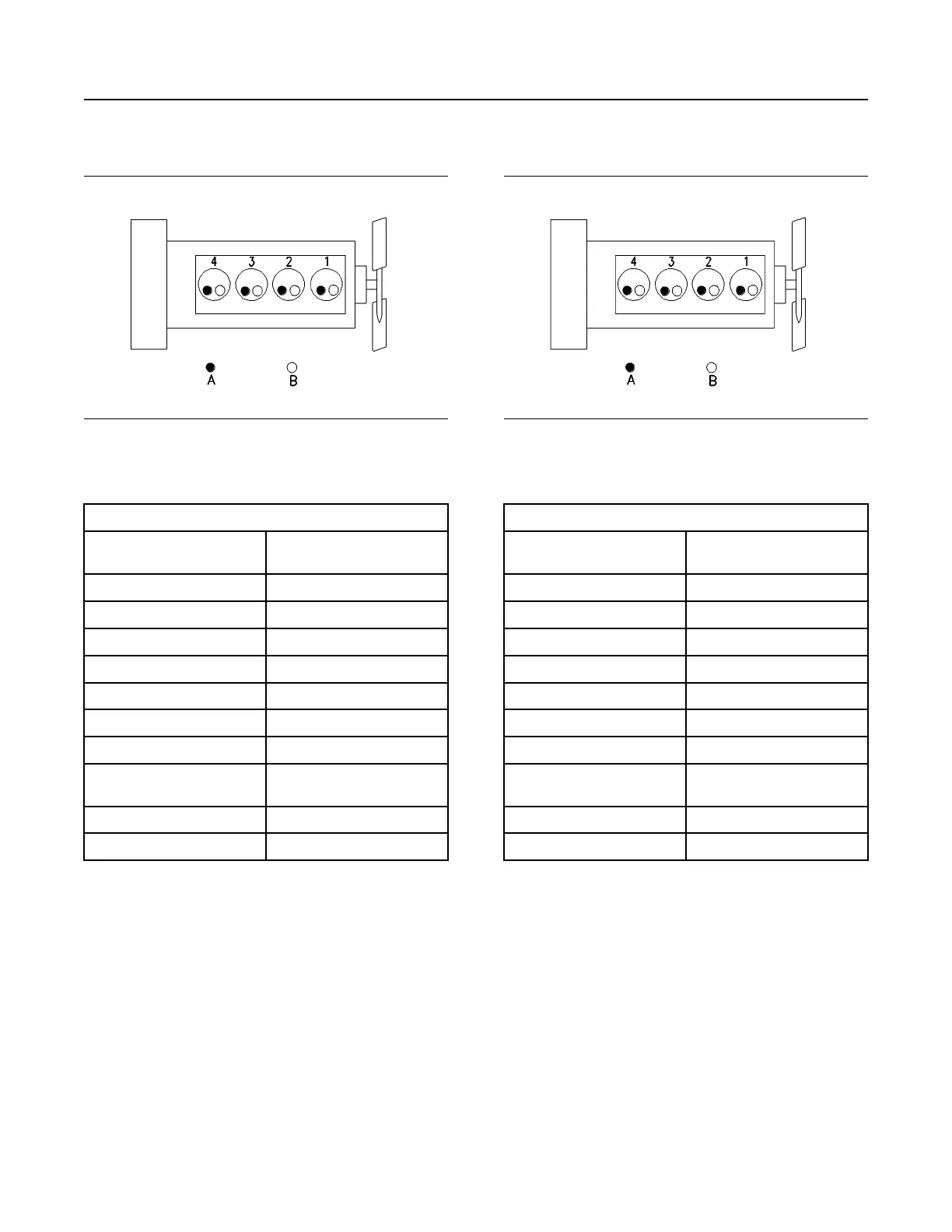

Illustration 21 g00296424
(A) Exhaust valves
(B) Inlet valves
Table 6
404C-15 Engine Specifications
Maximum Operating Speed
(rpm)
3000 rpm
Cylinders and Arrangement In-Line four cylinder
Bore 77 mm (3.03 inch)
Stroke 81 mm (3.19 inch)
Displacement 1.508 L (92.024 in
3
)
Aspiration
NA
(1)
Compression Ratio
23.5:1
Firing Order
1-3-4-2
Rotation that is viewed from the
flywheel
Counterclockwise
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
(1)
Naturally Aspirated
404C-22 Engine
Illustration 22 g00296424
(A) Exhaust valves
(B) Inlet valves
Table 7
404C-22 Engine Specifications
Maximum Operating Speed
(rpm)
3000 rpm
Cylinders and Arrangement In-Line four cylinder
Bore 84.0 mm (3.31 inch)
Stroke 100.0 mm (3.94 inch)
Displacement 2.216 L (135.229 in
3
)
Aspiration
NA
(1)
Compression Ratio
23.3:1
Firing Order
1-3-4-2
Rotation that is viewed from the
flywheel
Counterclockwise
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
(1)
Naturally Aspirated
