Perkins 404C-22T - Page 23

404C-22T Engine

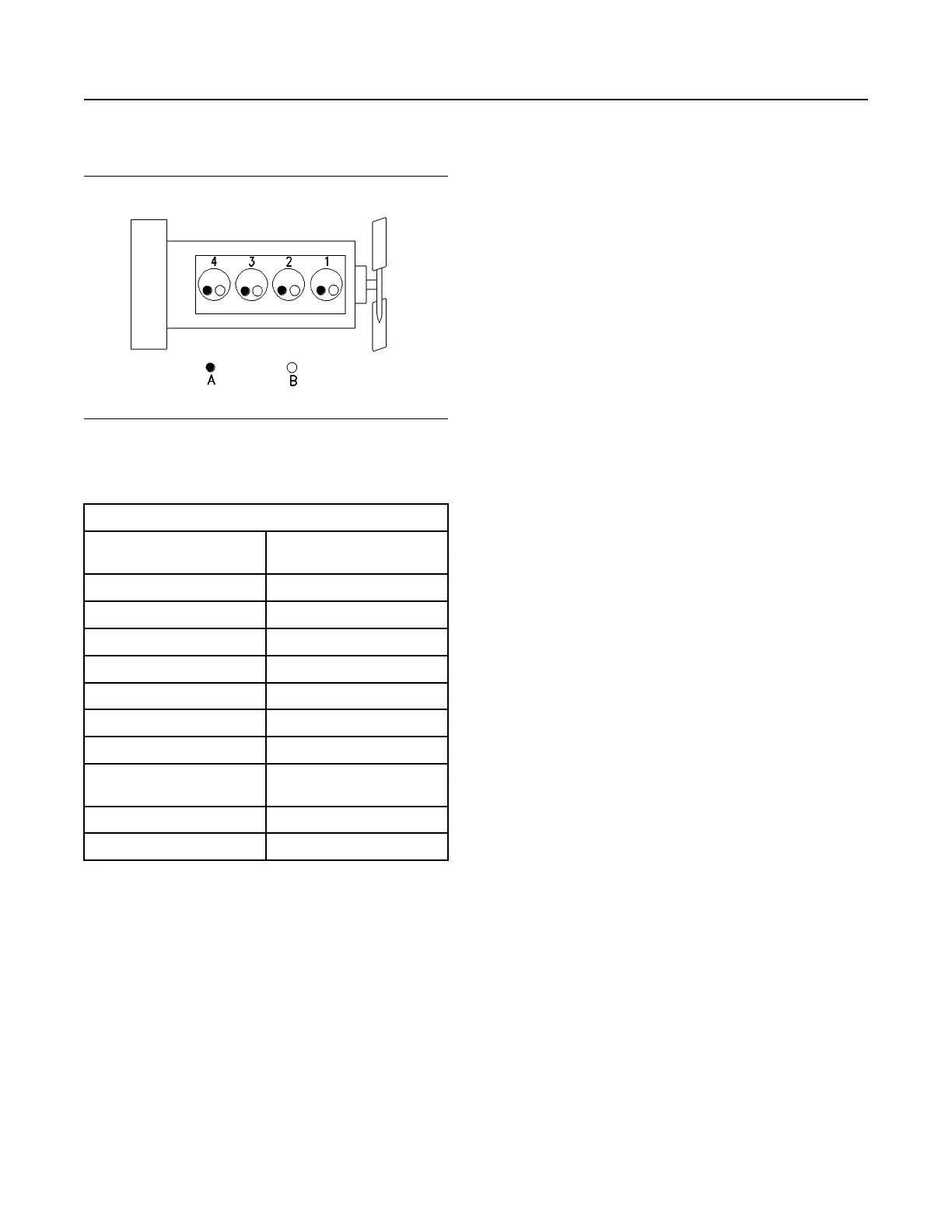

Illustration 23 g00296424
(A) Exhaust valves
(B) Inlet valves
Table 8
404C-22T Engine Specifications
Maximum Operating Speed
(rpm)
3000 rpm
Cylinders and Arrangement In-Line four cylinder
Bore 84.0 mm (3.31 inch)
Stroke 100.0 mm (3.94 inch)
Displacement 2.216 L (135.229 in
3
)
Aspiration
T
(1)
Compression Ratio
23.3:1
Firing Order
1-3-4-2
Rotation that is viewed from the
flywheel
Counterclockwise
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
(1)
Turbocharged
