TPD1317e Chapter 3
Page 15
Note: When tted, the bellows units should be in an unstrained condition so that the full bellows movement is
available to absorb expansion and engine movement.

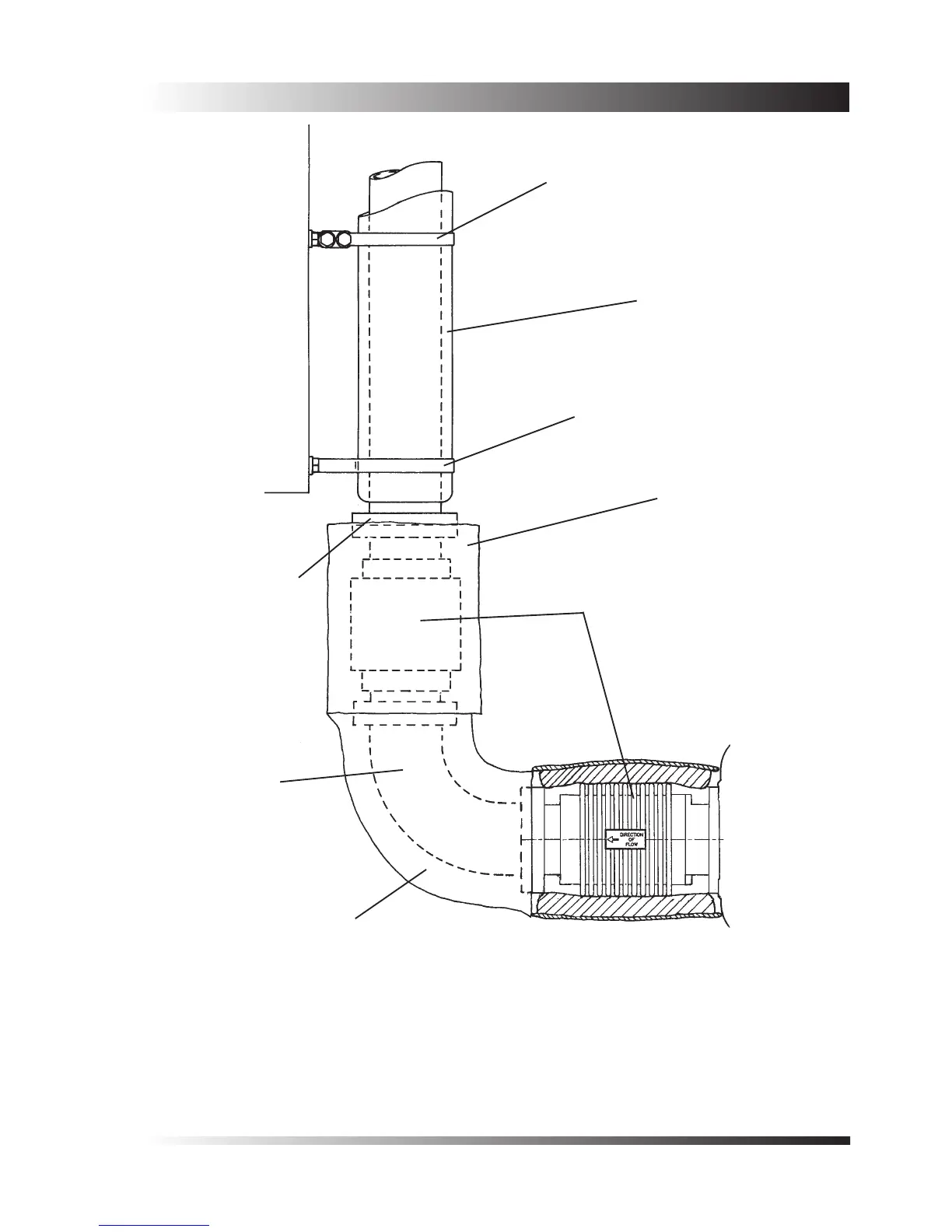

Figure 5 - Dry Exhaust System Features - M185C, M215C, M225Ti, M265Ti & M300Ti
Bracket with link to allow for movement due to
expansion in the exhaust system (horizontal
exhaust systems should be suspended from
the deck head using similar brackets - rigid
brackets should not be used).
Insulating lagging
Rigid bracket to support the weight of the
vertical exhaust system
Heat blanket
Twin stainless steel belows tted to
avoid torsional load on bellows unit
Flanges shown without
bolts for clarity
90
O
Elbow
Heat blanket
