Chapter 3 TPD1317e
Page 16
Note: When tted, the bellows units should be in an unstrained condition so that the full bellows movement is
available to absorb expansion and engine movement.

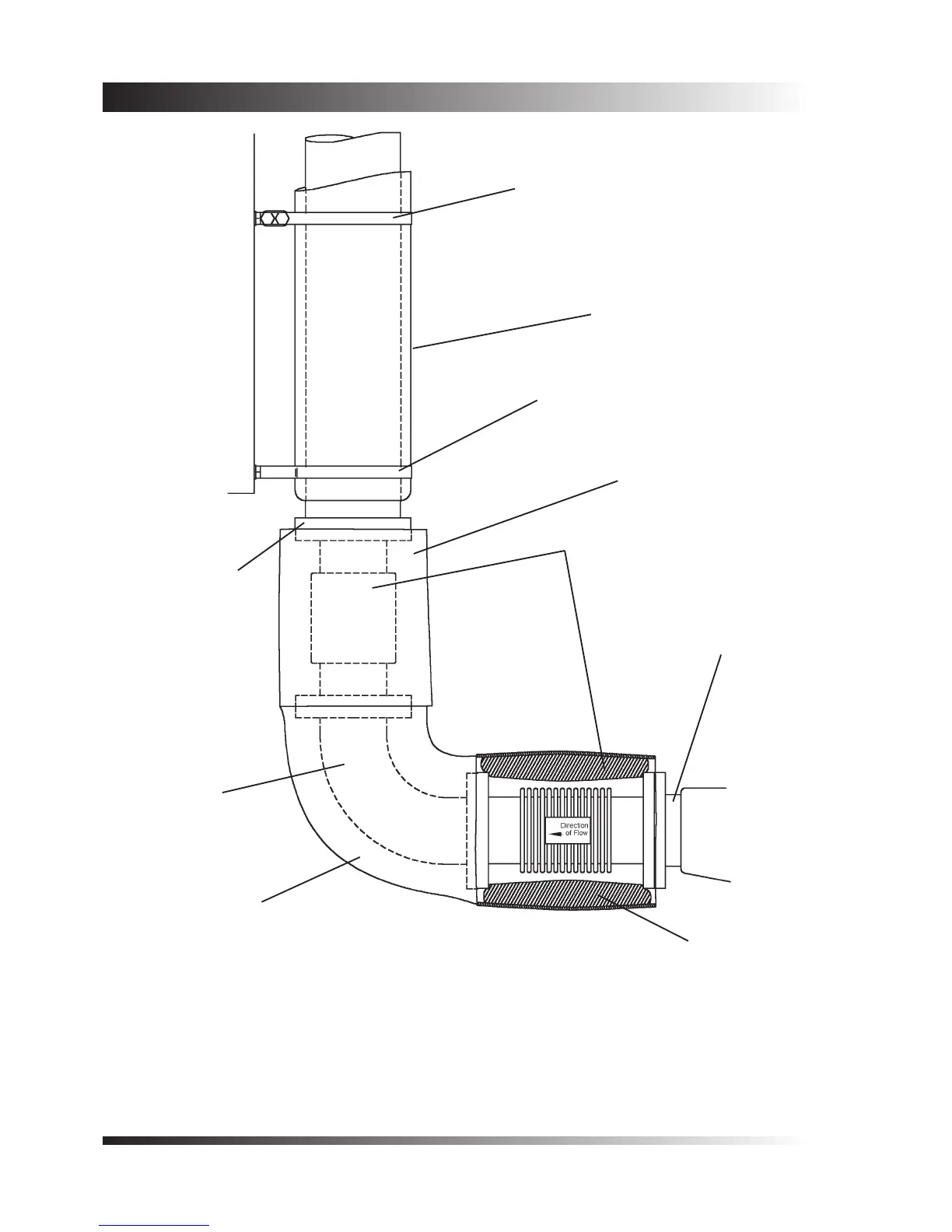

Figure 6 - Dry Exhaust System Features - M130C, M135.
Bracket with link to allow for movement due to
expansion in the exhaust system (horizontal
exhaust systems should be suspended from
the deck head using similar brackets - rigid
brackets should not be used).
Insulating lagging
Rigid bracket to support the weight of
the vertical exhaust system
Heat blanket
Twin stainless steel belows tted to
avoid torsional load on bellows unit
Manifold adaptor
Flanges shown without
bolts for clarity
90
O
Elbow
Heat blanket
Heat blanket
