IDS-710 Hardware Installation Guide

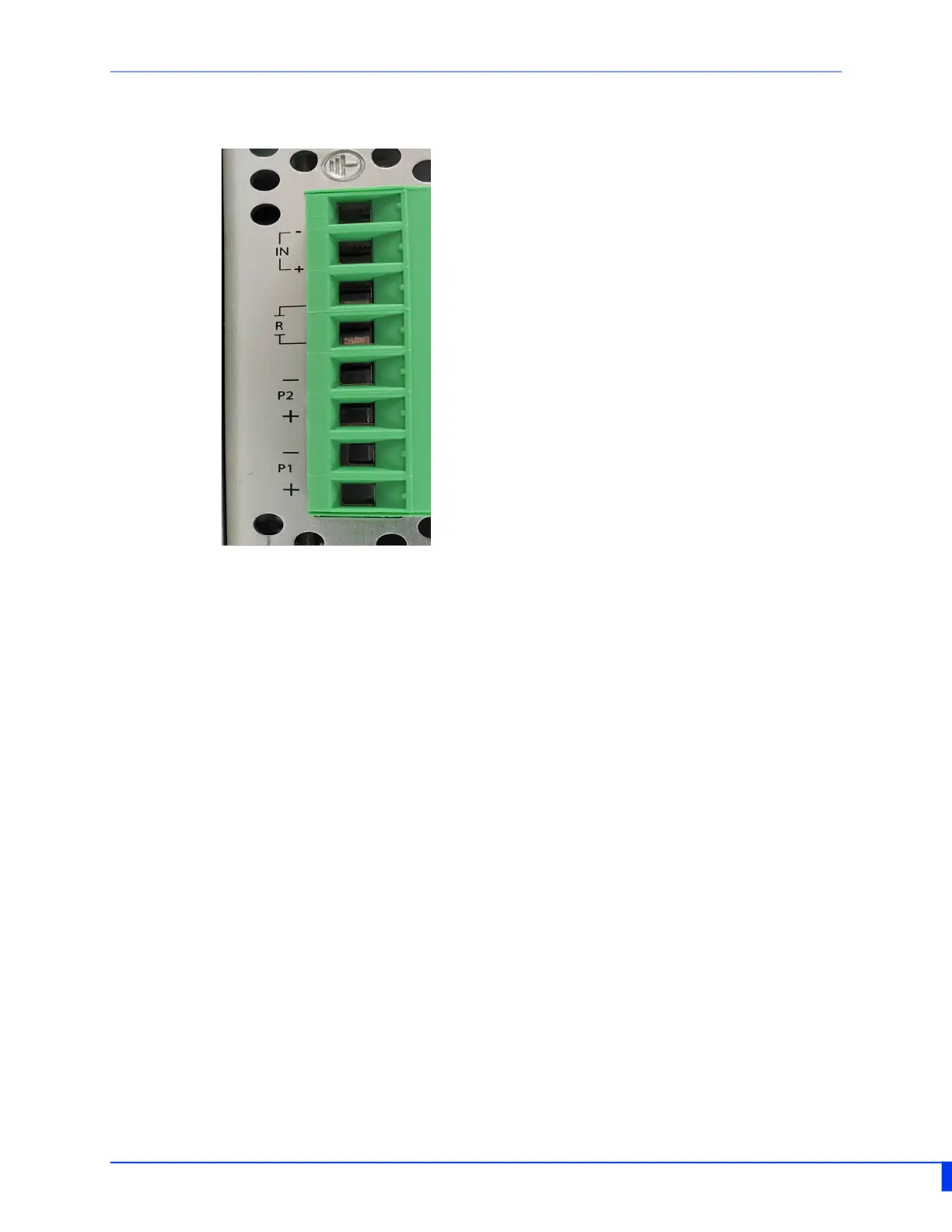

Terminal Block Connectors
P1(+/-) — Power Input 1.
P2 (+/-) — Power Input 2.
Either P1 or P2 can power the unit. When both are connected, one will act as a backup.
IN(+/-) — Digital Input. Dry Contact.
Relay — Normally Open (NO) relay.
