IDS-710 Hardware Installation Guide

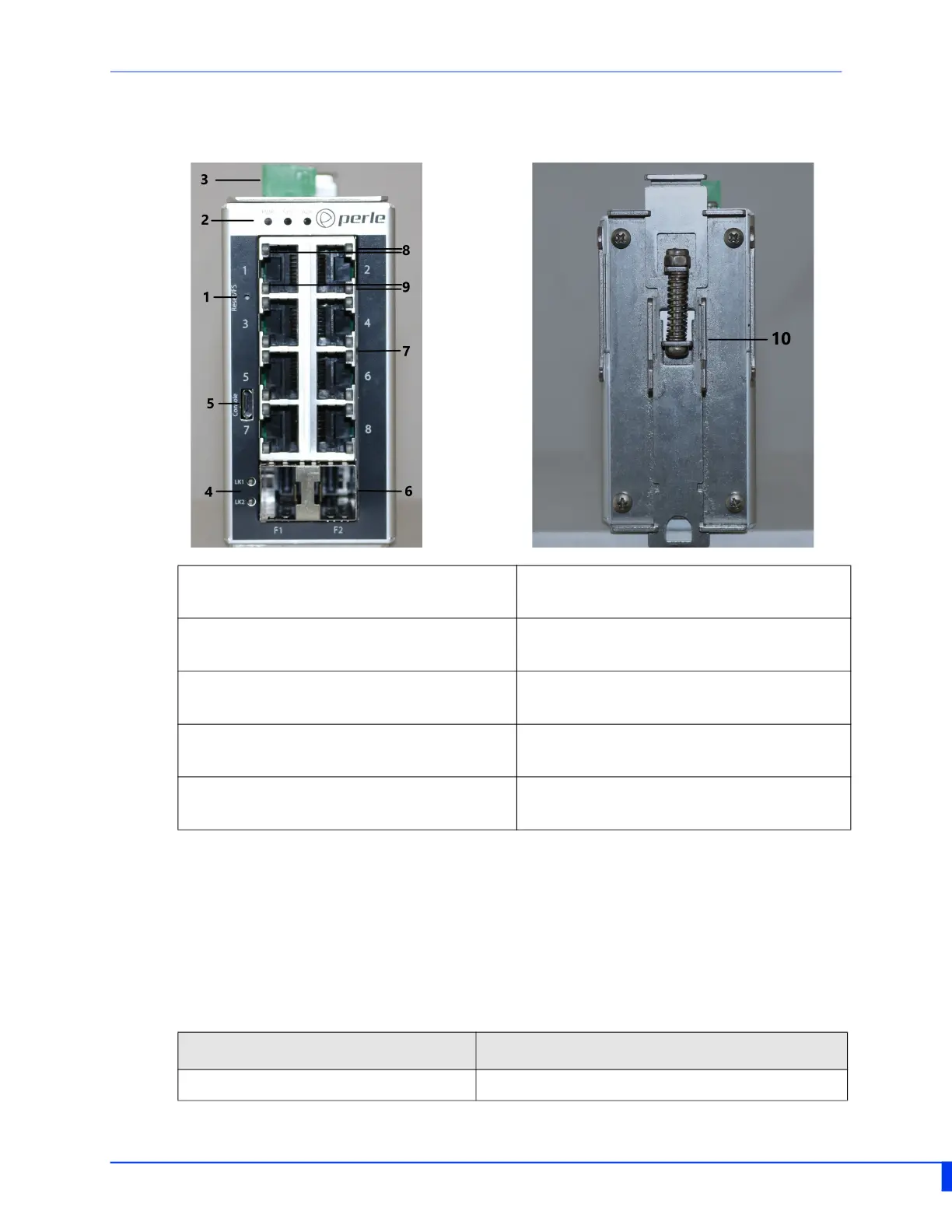

Switch Models Views
IDS-710 (including XT models)
LED Indicators
PWR (Power Inputs)
1 – Reset / FS (Fast Setup) 6 – SFP slots
2 – Status LEDs 7 – 10/100/1000Base-T Ethernet Ports
with PoE/PoE+/PoE++ capability
3 – Terminal Block for Digital Input and
Relay
8 – Ethernet LED 1
4 – SFP status LEDs 9 – Ethernet LED 2
5 – Console Port – MicroUSB 10 – DIN Rail Clip
State Description
Green P1 and P2 power within specifications
