Step
3
3-1
3-2
3-3
3-4

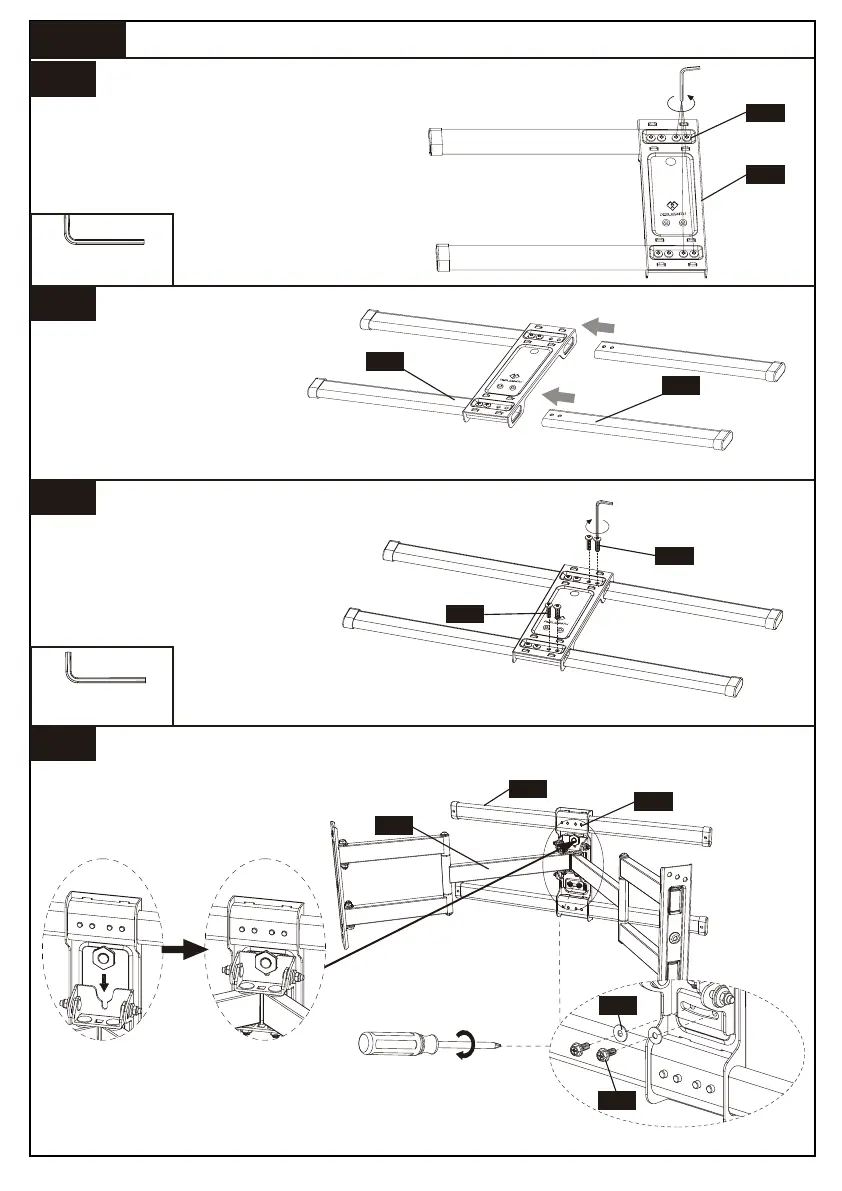

Secure Front Support Assembly to the Arm and Wall Plate
Remove the pre-assembed bolts [S] from
the front support [02] and save them for
the use in step 3-3.
02
03
02
01
02
S
S
S4
Allen Key
5/32 in.(4mm)
Allen Key
5/32 in.(4mm)
Insert the arm extensions
[03] into the front support [02]
Fasten the bolts [S] removed from
the front support [02] to secure the
arm extensions [03] to the front
support [02].
Hang the front support assembly to arm and wall plate [01]. Tighten the preassembled bolts
[S2] and washers [S1] to secure the front support assembly to arm and wall plate [01].
Make sure the big button in front
support [02] hangs on the hook of
the arm and wall plate assembly [01].
03
S1
S2
