Perlesmith PSLFK1 - Drill Pilot Holes and Mount Wall Plate

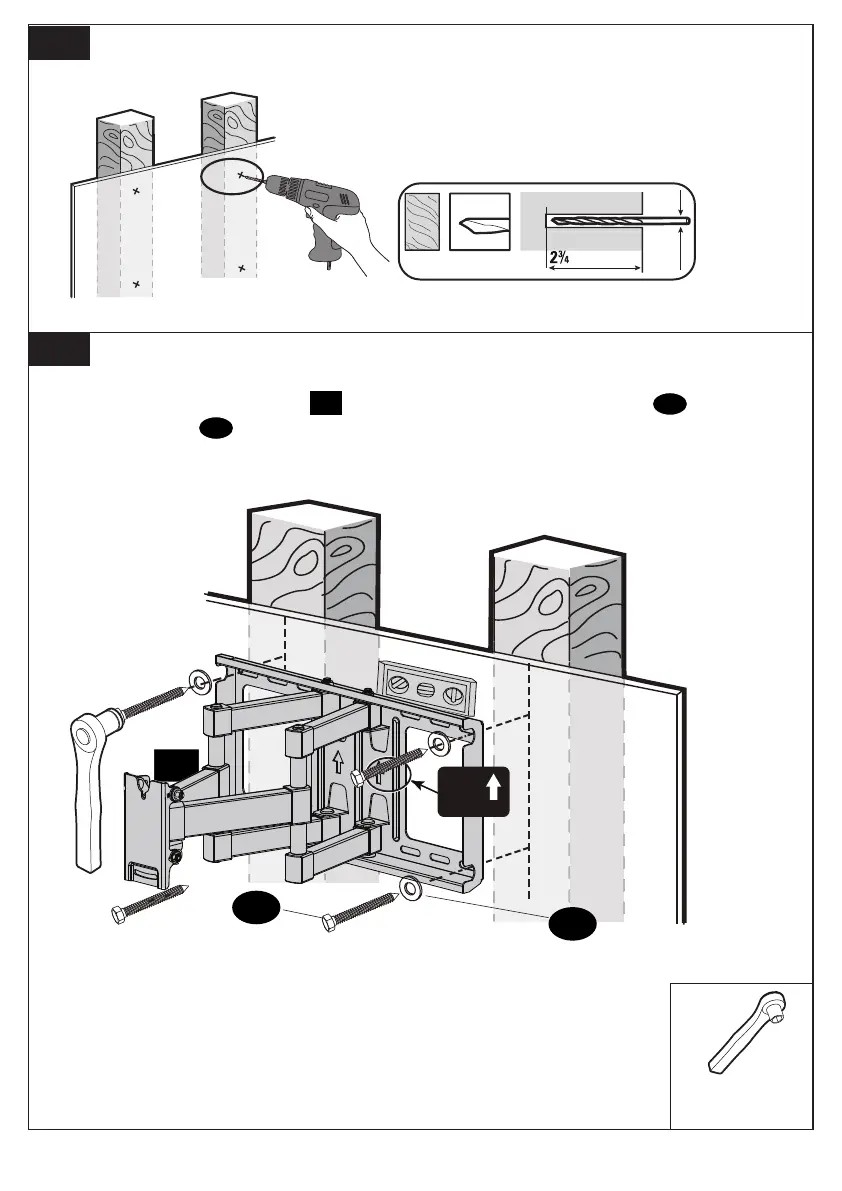

Drill 4 pilot holes using a 7/32 in. (5.5 mm) diameter drill
bit. Make sure the depth is not less than 2 3/4” (70mm).
7/32 in.
Ø5.5 mm
in. (70 mm)
Mount the wall plate using 4 sets of 5/16 lag bolts (a) and
washers B with a 1/2 in. socket wrench (not included).
A
B
3-4
3-3
1/2 in. (12.7 mm)
socket wrench
01
2
B
A
UP
01
