WARNING:
●Ensure the wall plate [01] and [02] is securely fastened to the wall
before continuing on to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
Wall
Anchor
A3
Step
5B
Solid Concrete or Concrete Block Option
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts
[A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled firmly against the
wall plate.
ø5.5mm
65mm
6
5A-3
5A-4
10mm
Socket Wrench

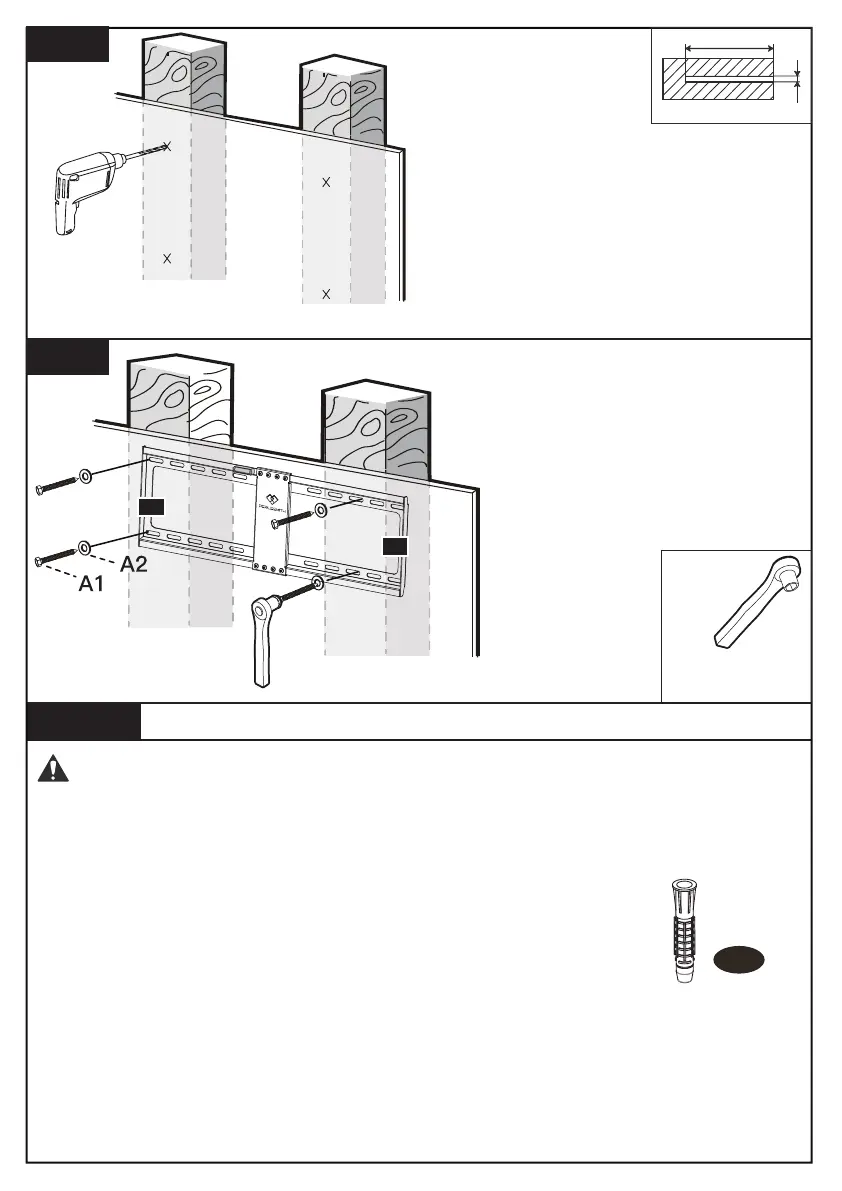

Drill 4 pilot holes using a 5.5 mm
diameter drill bit. Make sure the
depth is not less than 60mm.
Install the wall plate using lag bolts
[A1] and washer [A2]. Tighten the
lag bolts [A1] only until the washers
[A2] are pulled firmly against the
wall plate [01] and [02] .
01
02
To Next Page
