5A-1
5A-2

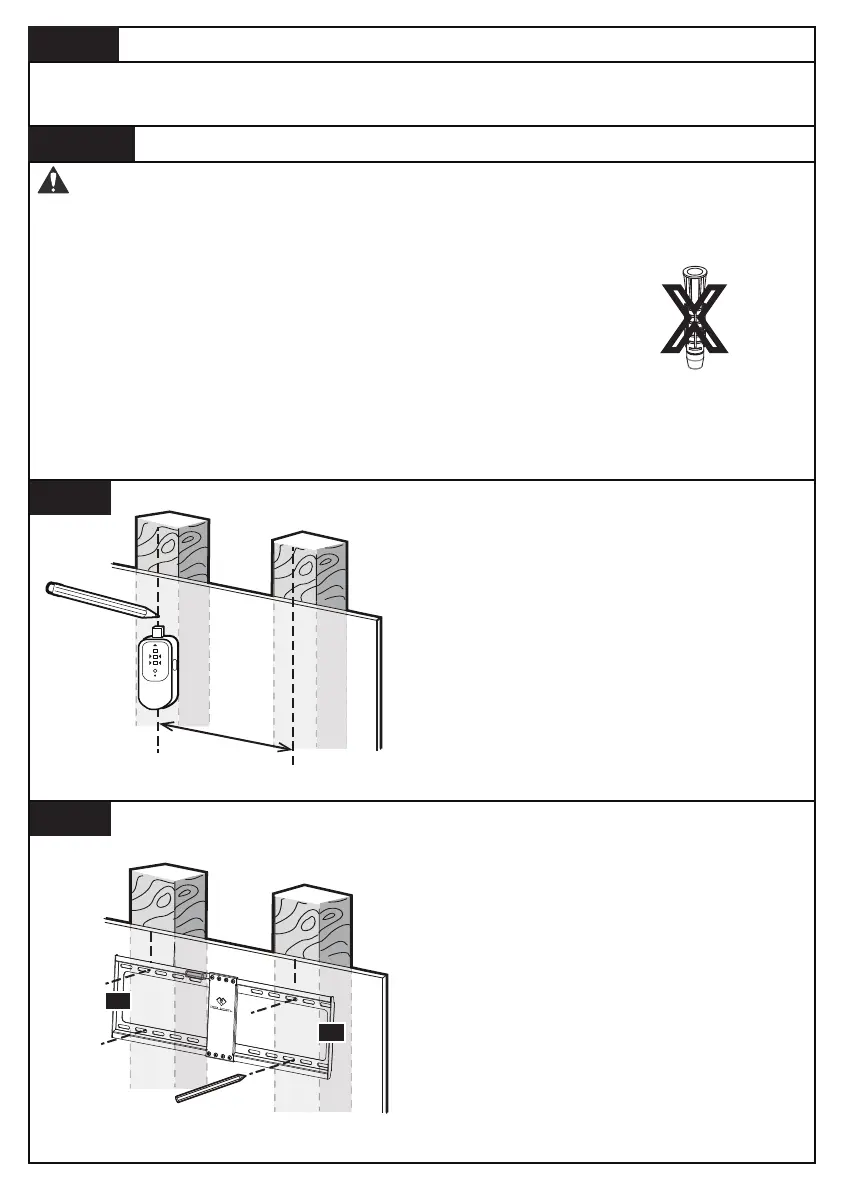

Use a stud finder (not included) to
locate wood studs. Mark the edge and
center locations.
Position the wall plate [01] and [02] at
your desired height and line up the holes
with your stud center line. Level the wall
plate and mark the holes.
24 in.(609mm)
16 in.(406mm)
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x 3½ in.
(38 x 89 mm)
● Stud center must be verified
●Ensure the wall plate [01] and [02] is securely fastened to the wall before
continuing on to the next step.
●DONOT USE ANCHOR [A3] FOR THIS STEP!
WARNING:
Step 5
For wood stud installation, follow STEP 5A
For concrete installation, follow STEP 5B
Secure the Wall Plate [01] and [02] to Wall
Step 5A
Wood Stud Option
X
5
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts
[A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled firmly against the
wall plate [01] and [02].
01
02
To Next Page
