Only one size of the fits your TV.

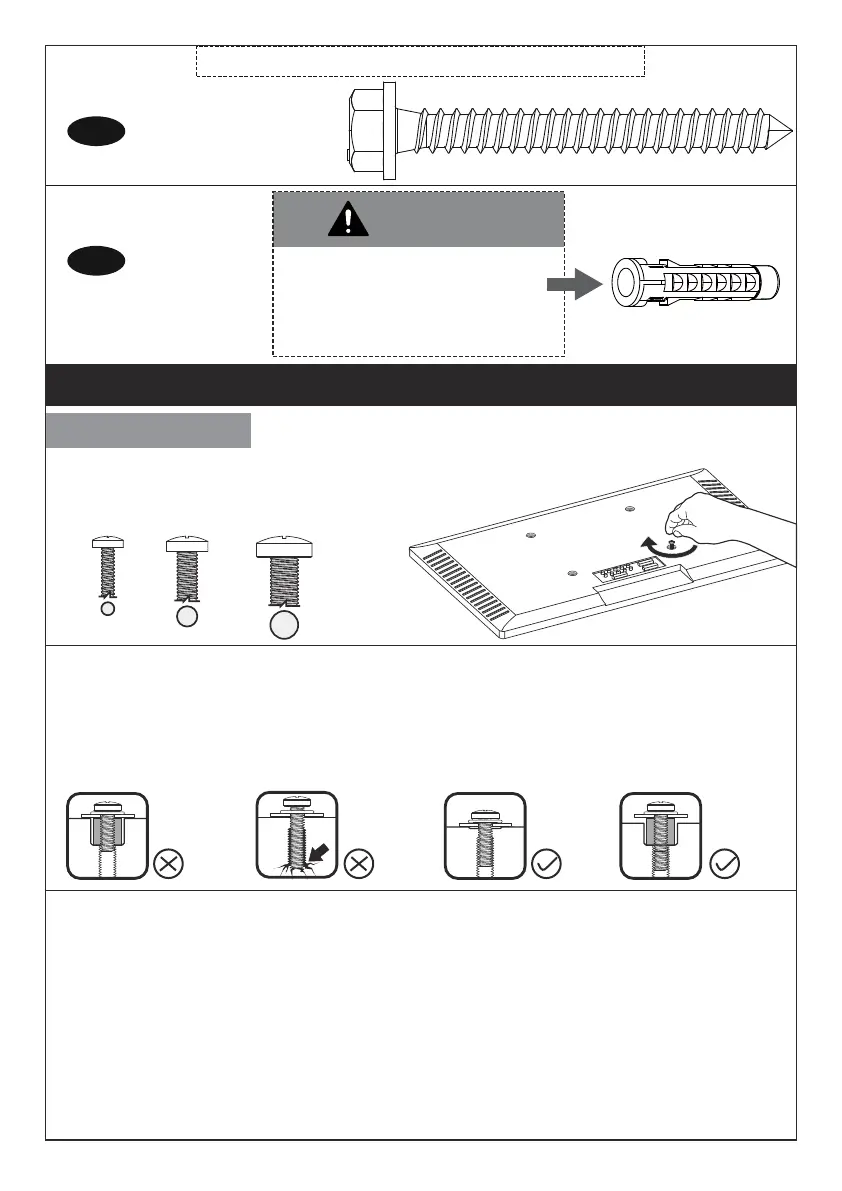

Step 1 Secure the TV Brackets [03] and [04] to TV
Select TV Bolts
BOLT LENGTH: Verify adequate thread engagement with bolts or bolts /
spacers combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
PLEASE NOTE: The provided TV bolts meet most of today’s TVs design.
However, some TVs require special bolts which may NOT be in the hardware
bag. In this case, we offer our “PSUHP" Universal Hardware Kit which
provides a large selection of bolts that can meet the demand of older and
unique applications.
IMPORTANT: When using the spacers, it is important to note that they can be
used in multi-layers (meaning stacked). If you have any difficulty undestand-
ing how to install the TV bolts or spacers, please contact customer service at
supportus@perlesmith.com.
Too Long
Correct Correct
Too Short
M4 M6 M8
NOTE: The lag screw shown is actual size.
x 4
A1
x 4
Wall
Anchor
Lag Screw
ST5/16 x 2-3/4"
This anchor is for con-
crete or brick walls
ONLY. DO NOT use them in
drywall or wood studs.
CAUTION!
φ10mm
A2
04 05 07 09
To Next Page
