● Avoid potential personal injury or property damage! Do not use a drill for
tightening the lag screws! Only use a socket wrench. DO NOT over-tighten the lag
screws [A1]. Tighten the lag screws [A1] only until they are pulled firmly against
the wall plate [01] and [02].
● DO NOT USE THE ANCHOR [A2] FOR THIS STEP!
● Ensure the wall plate [01] and [02] is securely fastened to the wall
before continuing to the next step.
● Any material covering the wall must not exceed 5/8” (16mm).
● Nominal wood stud size: common 2 x 4” (51 x 102mm)
minimum 1 1/2 x 3 1/2” (38 x 89mm).
● Stud center must be verified.
A2
X
Phillips Screwdriver
(NOT lncluded)

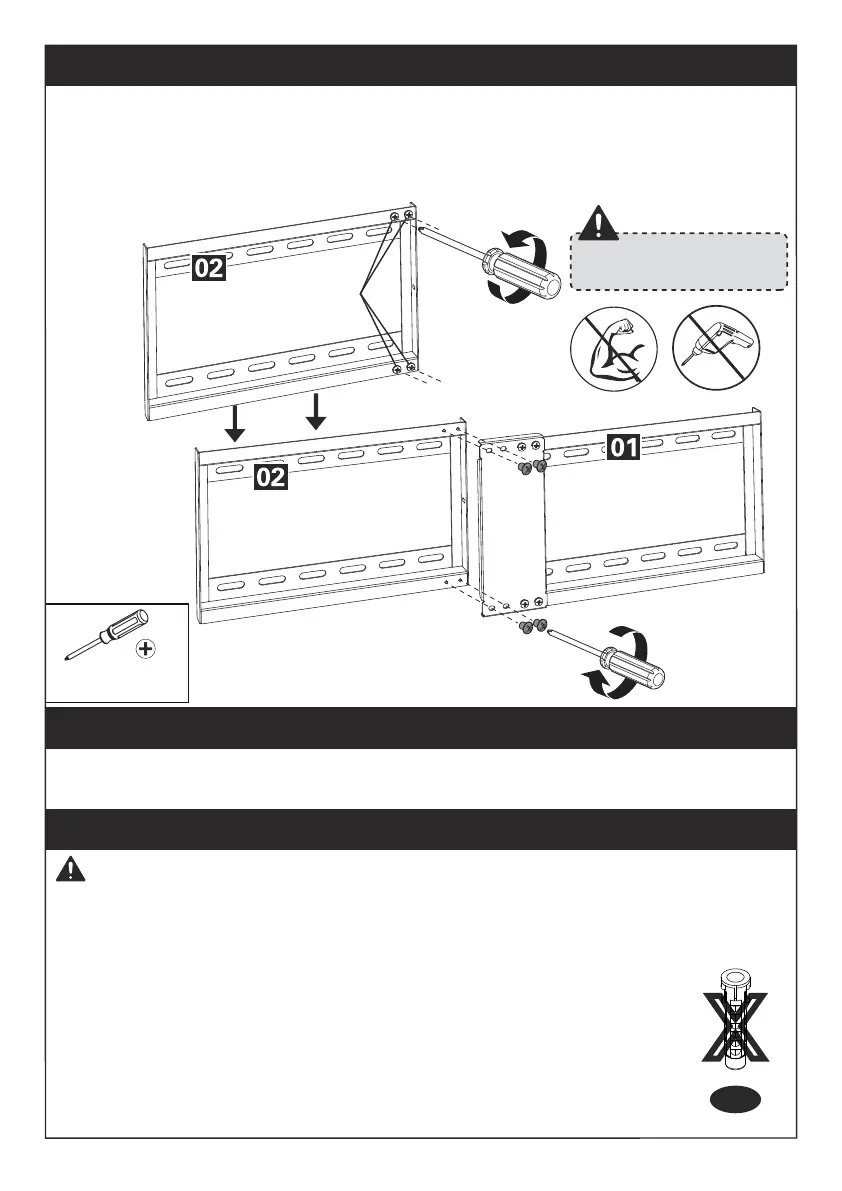

Step 2 Assemble the Wall Plate [01] and [02]
2-1 Loosen 4 preassembled bolts [S1] using Phillips screwdriver and keep
for the use in 2-2.
2-2 Secure the right wall plate [01] to the left wall plate [02] by tightening
the bolts [S1].
Tighten
Loosen
S1
2-1
2-2
DO NOT overtighten.
Tighten only until snug.
Step 3 Attach the Wall Plate [01] and [02] to Wall
For wood stud installation, follow STEP 3A.
For concrete installation, follow STEP 3B.
Step 3A Wood Stud Option
WARNING:
05 07 09
