Rem ind!
If your TV hole pattern is g reater than 200 mm x 200 mm
(OPT B and C ), attach
02
01
to faceplate using
TV bracket extenders
and
S TEP 2

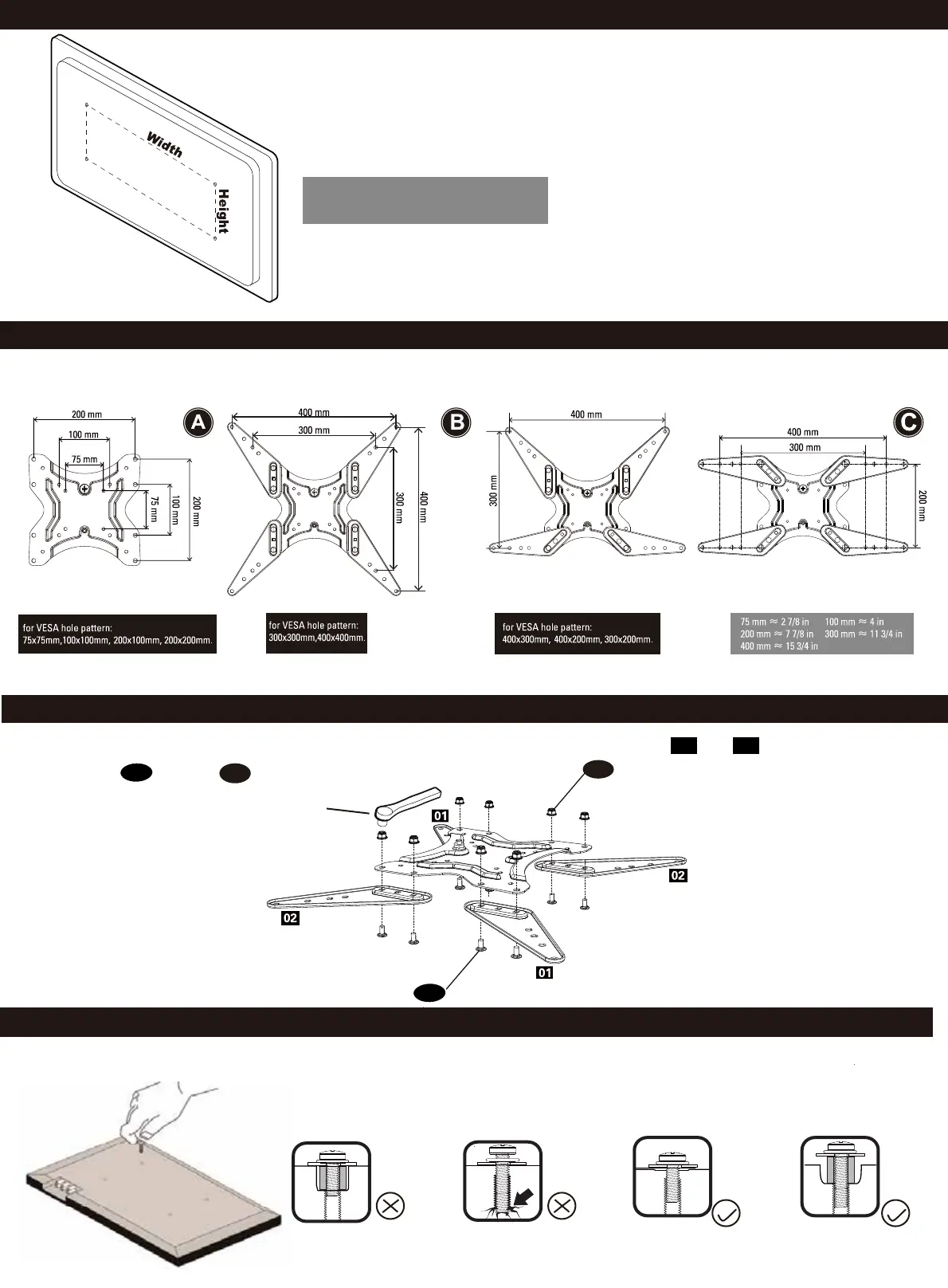

Measure the distance between the holes located at the back of your TV (these measures
may form the shape of a square, or a rectangle) and check that these taken measures are
within the VESA(*) range for this wall mount.
(*) VESA: International standard established by the TV manufacturers used to determine if
LCD / LED TVs are compatible with wall mounts.
75 mm ≈ 2 7/8 in 100 mm ≈ 4 in
200 mm ≈ 7 7/8 in 300 mm ≈ 11 3/4 in
400 mm ≈ 15 3/4 in
S TEP 3
Determine which TV bracket option A, B, or C to use based on your TV hole pattern measurements from STEP 2.
Ca rriage bolts and nuts
STEP 4-1
BEFORE TV BRACKET INSTALLATION
Check TV screws:
select the proper screw length for your TV by hand tightening to check your plat
panel thread depth.
Correct Correct
Too Long
Too Short
2
G
3/8 in.
(10 mm)
Socket wrench
B
G
H
To Next Page
