01
IMPORTANT SAFETY INFORMATION

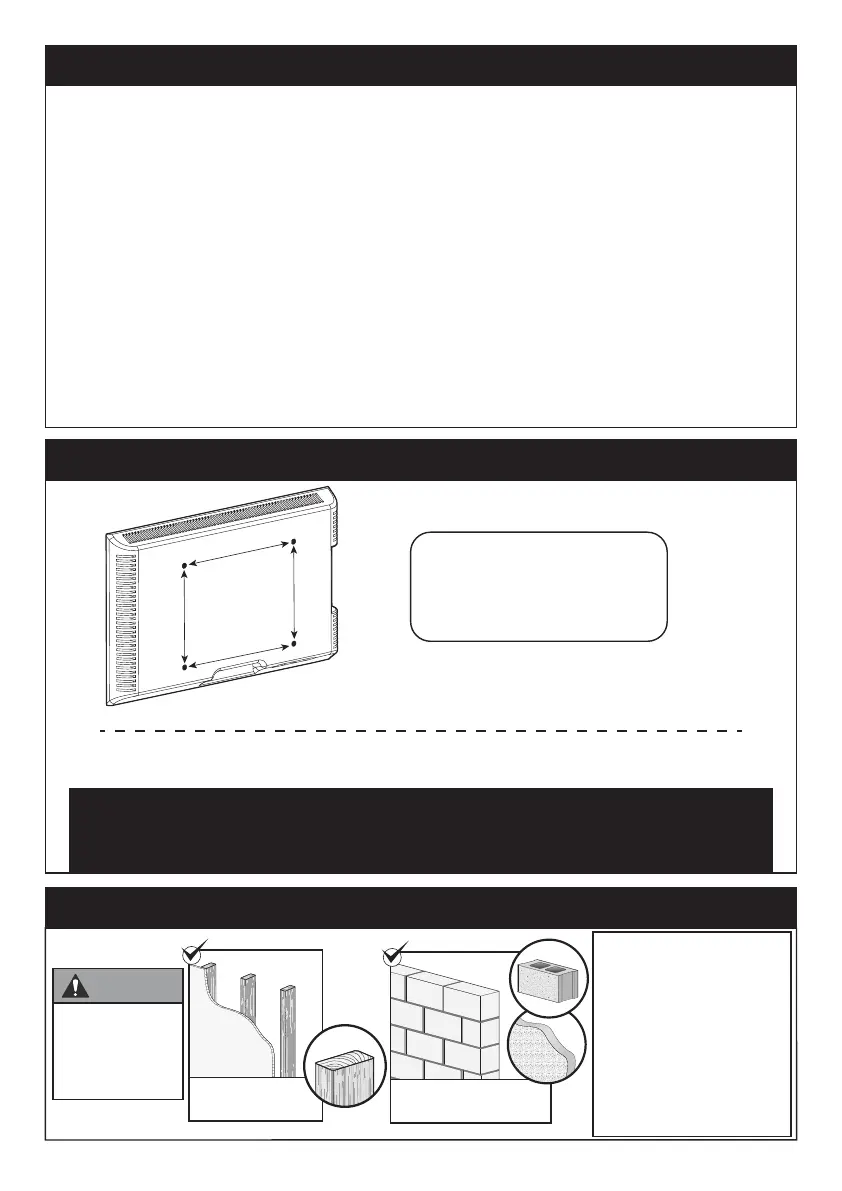

Check the VESA Pattern of TV before the Installation
Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
contact our Technical Support line at 1-800-556-6806 or customer service
at supportus@perlesmith.com (US)/ supportca@perlesmith.com (CA).
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete block
and brick walls. - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
Verify Your Wall Construction
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone
Wood Studs
(with Drywall)
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
300 mm ≈ 11 3/4 in.
Minimum VESA pattern: 100mm/4 in.(W)x100mm/4 in.(H)
If your TV VESA is greater than 400x400 mm/16x16in. or less than
VESA 100x100mm/4x4 in., this mount is NOT compatible.
If this mount is NOT compatible, please contact customer service at
supportus@perlesmith.com (US)/ supportca@perlesmith.com (CA) to find
a compatible mount.
MAX: 400mm/16 in.
MAX: 400mm/16 in.
If you are not sure the
wall construction, please
contact our technical
support line at
1-800-556-6806 or
customer service at
supportus@perlesmith.com
(US)/
supportca@perlesmith.com
(CA).
To Next Page
