Perlesmith PSTVMC03 - Attach Glass Shelf Support; Securing Shelf Support and Glass Shelf

13

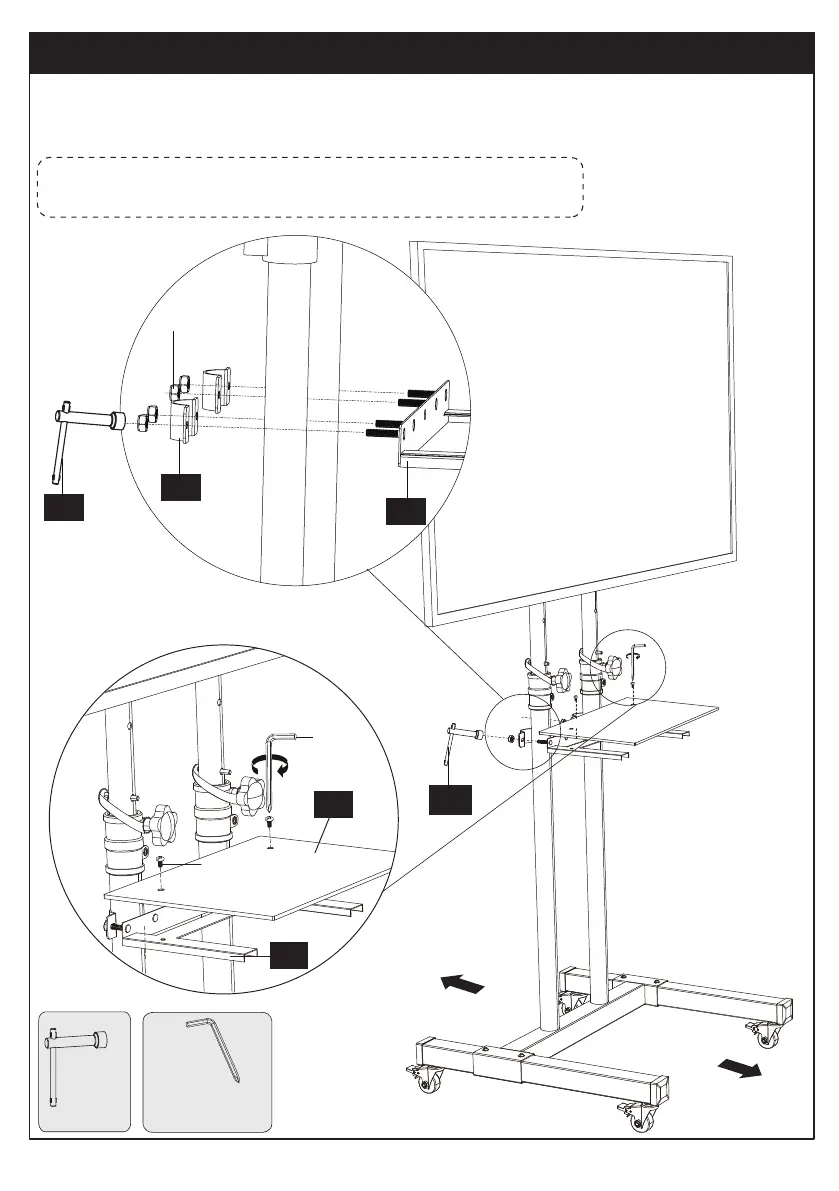

Step 6 Attach the Glass Shelf Support to the Lower Poles
Back
Front
Socket
Wrench
Step 6-1 Secure the glass shelf support [08] to the lower poles using shelf support
connectors [09] and nuts [Z-F].
Step 6-2 Tighten bolts [Z-G] to secure glass shelf [10] to glass shelf support [08].
[Z-F]
[Z-G]
09
08
10
[Z-J]
12
12
08
Note: Please do not over-tighten the bolts [Z-G] or use electric drill to
prevent the glass shelf [10] from breaking.
Step 6-1
Step 6-2
13/64”
(5mm)
Large Allen Key
