Perlesmith PSTVMC03 - Assemble the Base; Connecting Base Components; Attaching Casters to Base

08
Step 2 Assemble the Base

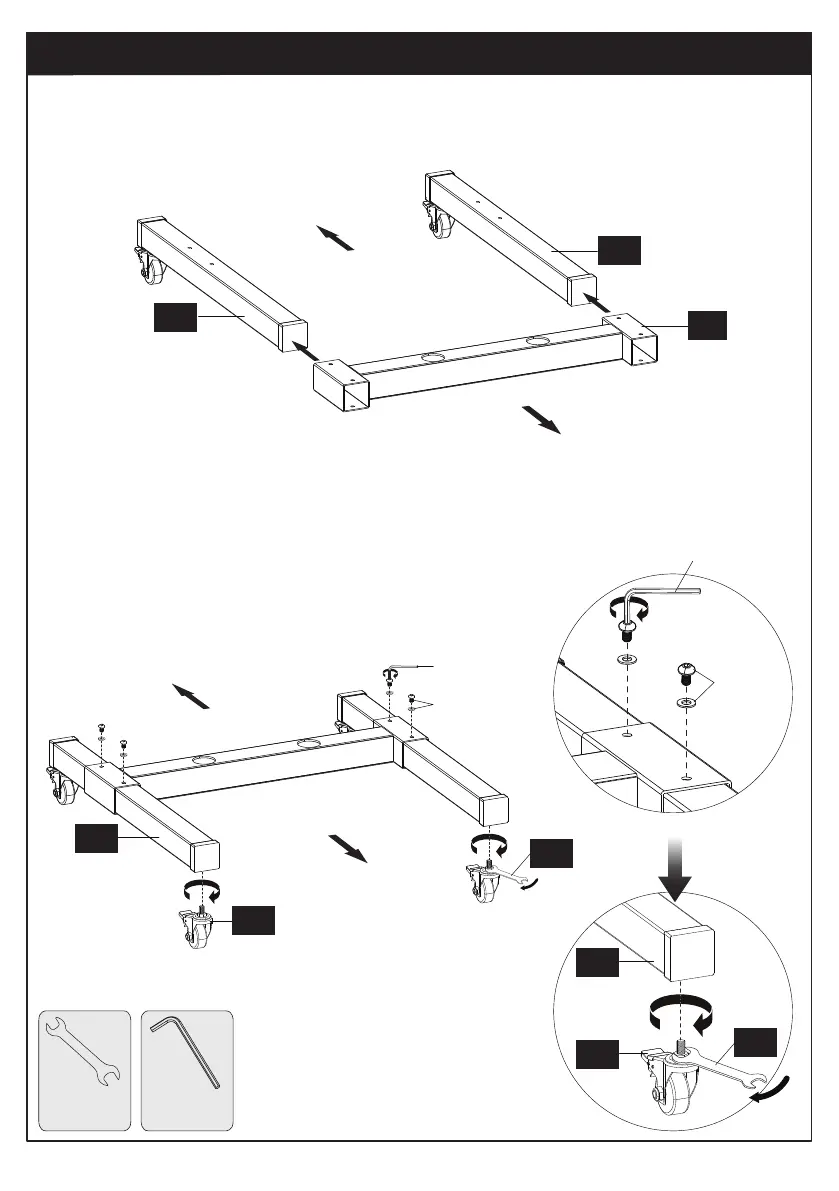

Step 2-1 Slide the tube and pole connector [03] onto the square tubes [02].
Step 2-2 Secure the base using bolts and washers [Z-A] and the provided Allen key
[Z-I]. Attach casters [04] to the square tubes [02] using the provided wrench [11].
Wrench
5/32”
(4mm)
Small Allen Key
02
03
Back
Front
Back
Front
Tighten the bolts [Z-A].
[Z-I]
[Z-A]
Back
Front
[Z-A]
[Z-I]
Back
Front
04
11
02
02
02
04
11
