5/32″ (4mm)
06
[T]
[Z-G]
04
05
06
06
07
08
NOTE: The raised notches
on pole connector [06]
should be aligned with the
round notches on poles.

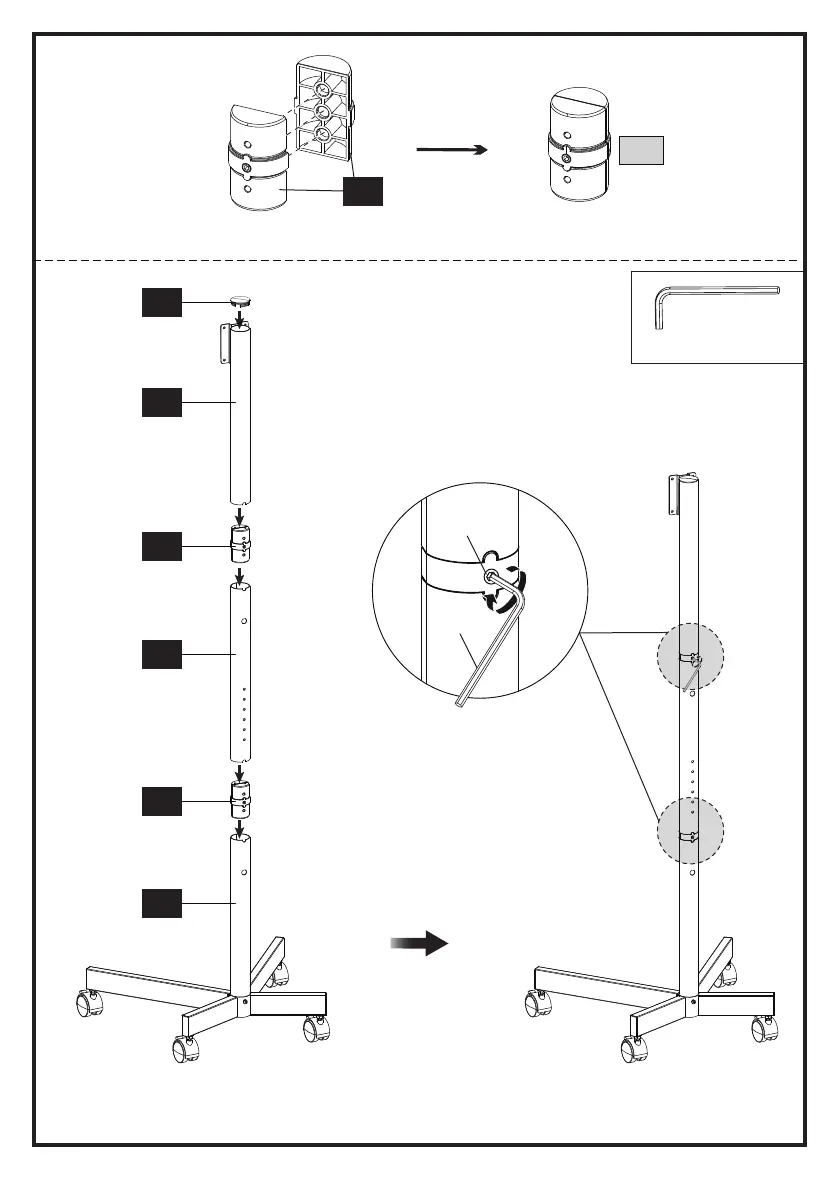

Secure the middle pole [05] and upper pole [07] to the lower pole [04], then attach the
pole cover [08]. Tighten the set screws [T] to fasten.
Combine the two parts of each pole connector [06].
2X
13
