06
08
D1/E1
B
Please note: The bolt hole locations
on your TV may very in accordance of
the manufacturers design of the TV.
We are only illustrating possible
locations of the bolt holes.

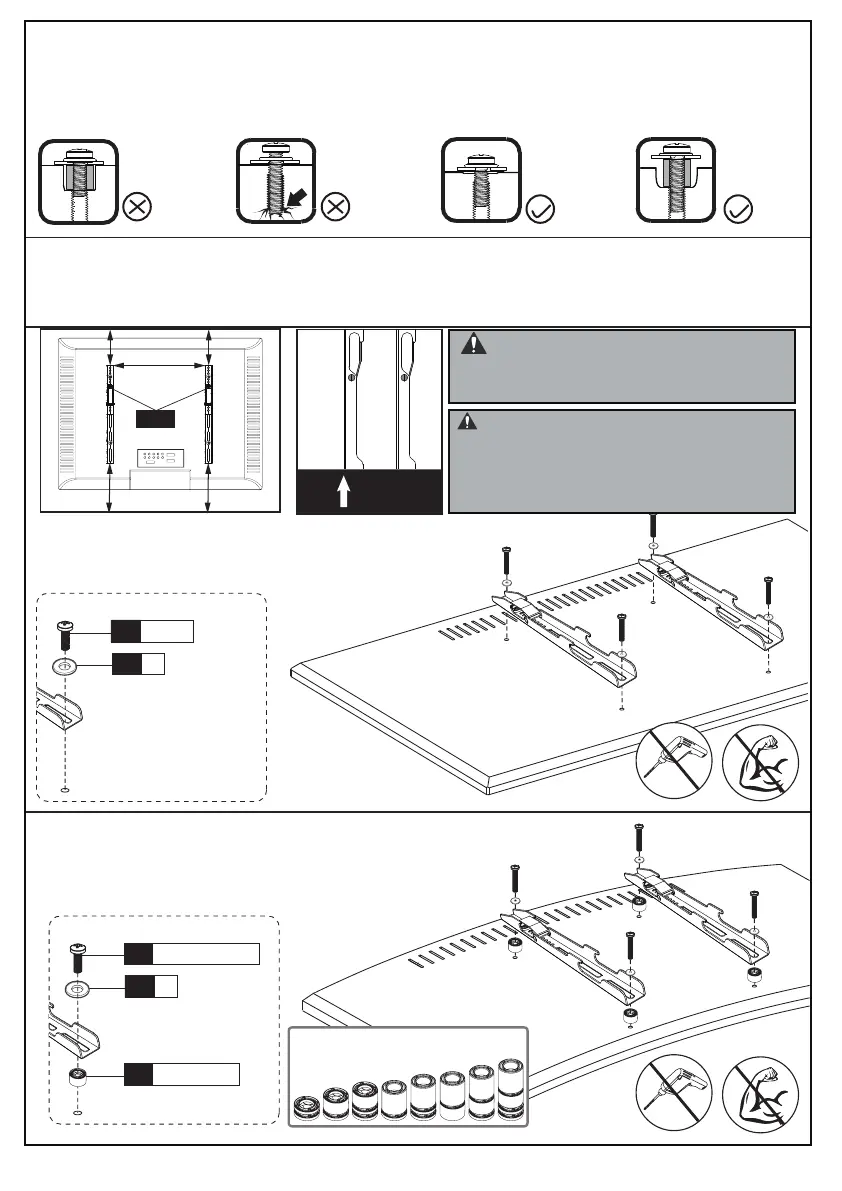

Option A (For Flat Back TV)
Option B (For Round Back TV)
07
06
08
D2/E2/E3/E4
B
C1/C2/C3
UP
CAUTION: Ensure the TV brackets
[03] are EQUALLY CENTERED on your
TV AND securely fastened in place.
03
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination.
We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Note: If necessary, the spacers can be used in multi-layer. If the installation fails
after trying various methods, please contact customer service at
supportus@perlesmith.com
Too Short Too Long Correct
Correct
Alternate Spacer Setups
05
To Next Page
